TB Davies Light Duty Combination Extension Ladder

– Product Specification

The light duty combination extension ladder is a versatile multifunction ladder that can be used as a straight extension, basic A-frame step, extended A-frame step and stairwell ladder that is easy to use and light enough to carry comfortably between jobs.

Features:

– Use as a straight extension, extended A-frame, A-frame step and stairwell ladder
– Rigid box section stiles

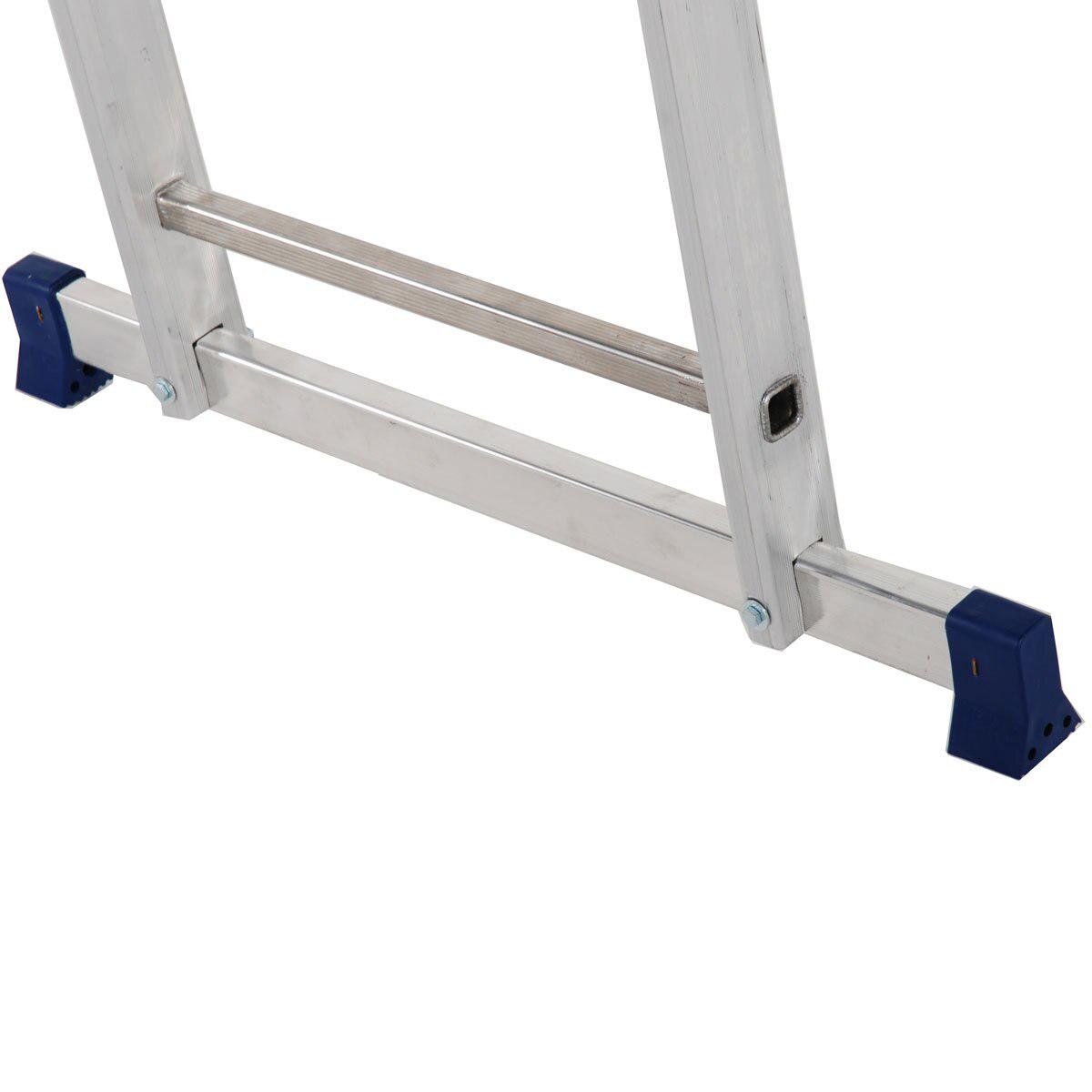

– Wide horizontal stabiliser bar
– EN131 Rated
– Rungs: 7+7+7
– Norminal Length: 2.0m
– Max. Load: 150kg
– Warranty: 1 year manufacturer’s warranty

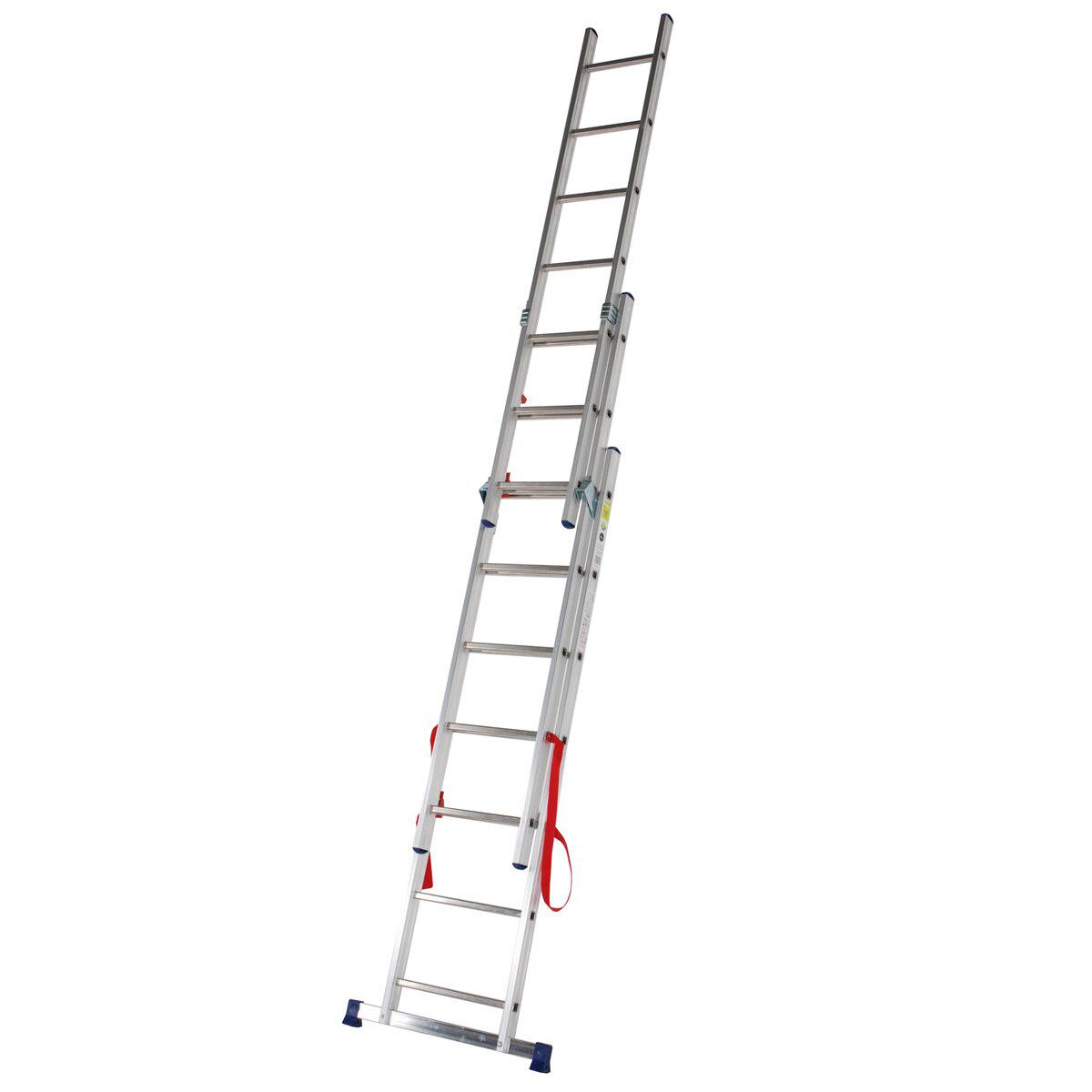

Straight Ladder Features:

– Max. Working Height with Extension: 4.9m (490cm)
– Closed Length: 2.0m (200cm)
– Ext. Length: 4.3m (430cm)
– Stored Depth: 150mm
– Stabiliser Width: 760mm
– Stabiliser Dimensions: W 60 x D 25 mm
– Stile Depth: 60 x 25 mm

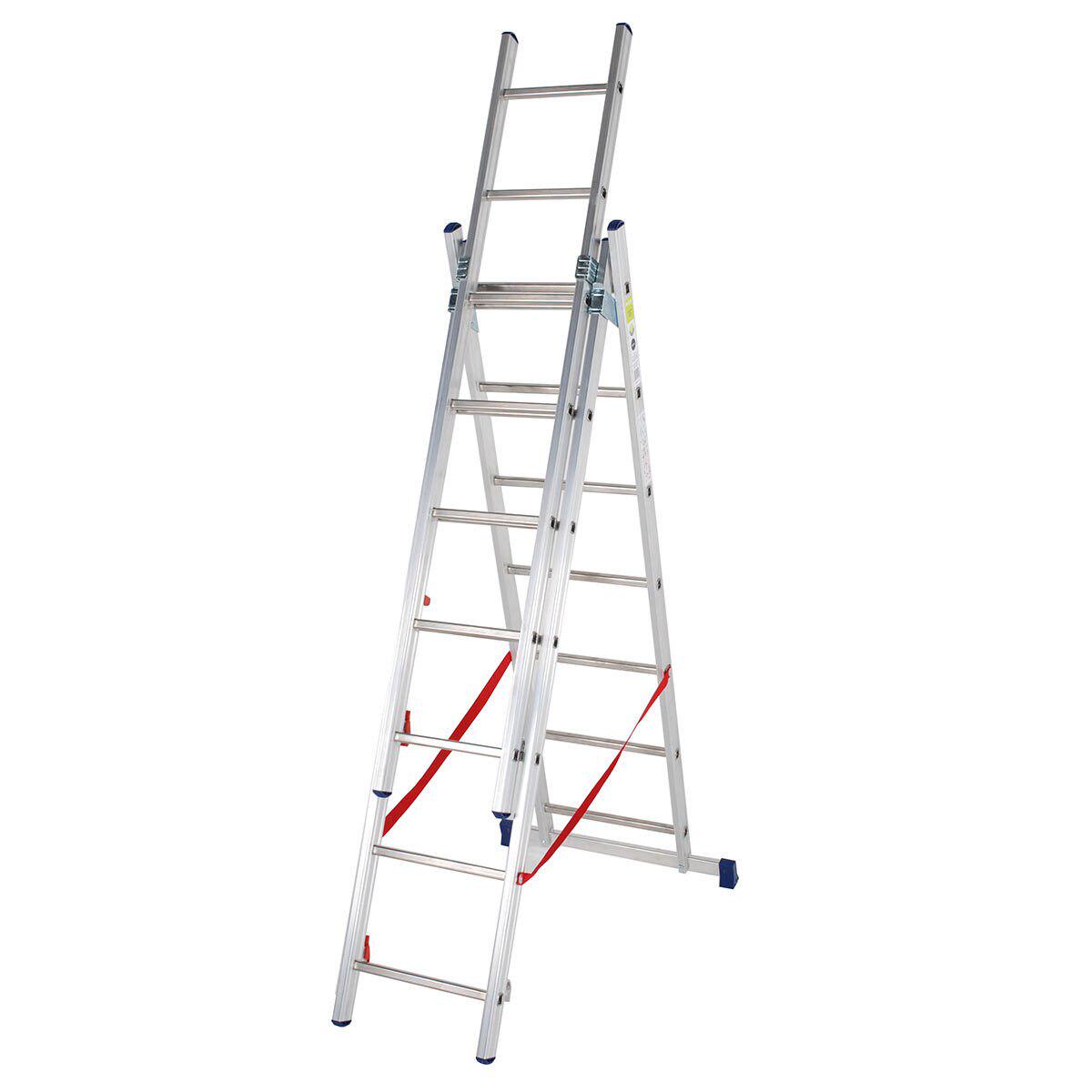

Step Ladder Features:

– Open Step Depth: 1,310mm
– A-Frame Open Step Height: 1.9m (190cm)
– Approx. Working Height: 2.6m (260cm)
– Last Climbing Height: 1.0m (100cm)

Extended Step Ladder Features:

– Ext. A-Frame Open Step Height: 3.0m (300cm)
– Approx. Working Height: 3.7m (370cm)
– Last Climbing Height: 2.1m (210cm)
