sb components RFID Breakout UART/USB 2.0 Interface Information ID Card Reader RFID Key Fob and Tag Reader for Raspberry Pi, Arduino, STM32, Beaglebone, etc.
£22.67
Out of stock
Unlock the potential of contactless identification with the SB Components RFID Breakout, an advanced 125kHz card and tag reader designed for seamless integration with Raspberry Pi, Arduino, STM32, and BeagleBone. This compact, plug-and-play solution features dual UART and USB 2.0 interfaces, offering makers and engineers unparalleled flexibility for building security systems, attendance loggers, and smart inventory trackers.
- Universal Multi-Platform Support: Engineered for flawless compatibility with all major microcontrollers, including Raspberry Pi, Arduino, and STM32, for diverse DIY electronic projects.
- Versatile Dual Connectivity: Features integrated UART (Serial) and USB 2.0 interface options, allowing for easy data extraction on both embedded hardware and PC-based applications.
- Precision 125kHz Frequency: Optimized to reliably read standard RFID key fobs and identity cards with an integrated antenna and onboard buzzer for instant user feedback.
- Industrial-Grade Efficiency: Operates on a standard 4.5V to 5.5V DC supply with a compact, space-saving form factor ideal for integration into portable devices and tight enclosures.
Out of stock
Shipping & Delivery
-
Courier delivery under £30
Our courier will deliver to the specified address
2-3 Days
From £4.99
-
Prime delivery
Our prime courier will deliver to the specified address
1-2 Days
From £12.99
-
Manufacture Warranty 1 Year
-
Free 30-Day returns
Product Description
Product Overview
Unlock the power of contactless identification with the SB Components RFID Breakout, the ultimate plug-and-play solution for makers, engineers, and hobbyists. Designed for seamless integration, this versatile board allows you to read 125kHz RFID fobs and tags with incredible ease. Whether you are building an advanced security system, an automated attendance logger, or a smart inventory tracker, this breakout provides the high-performance data extraction you need. Featuring dual UART and USB 2.0 interfaces, it offers unparalleled flexibility across a wide range of platforms, including Raspberry Pi, Arduino, STM32, and BeagleBone. Compact, efficient, and reliable, the SB Components RFID Breakout transforms complex radio frequency identification into a simple, manageable task for any digital project.
Key Features

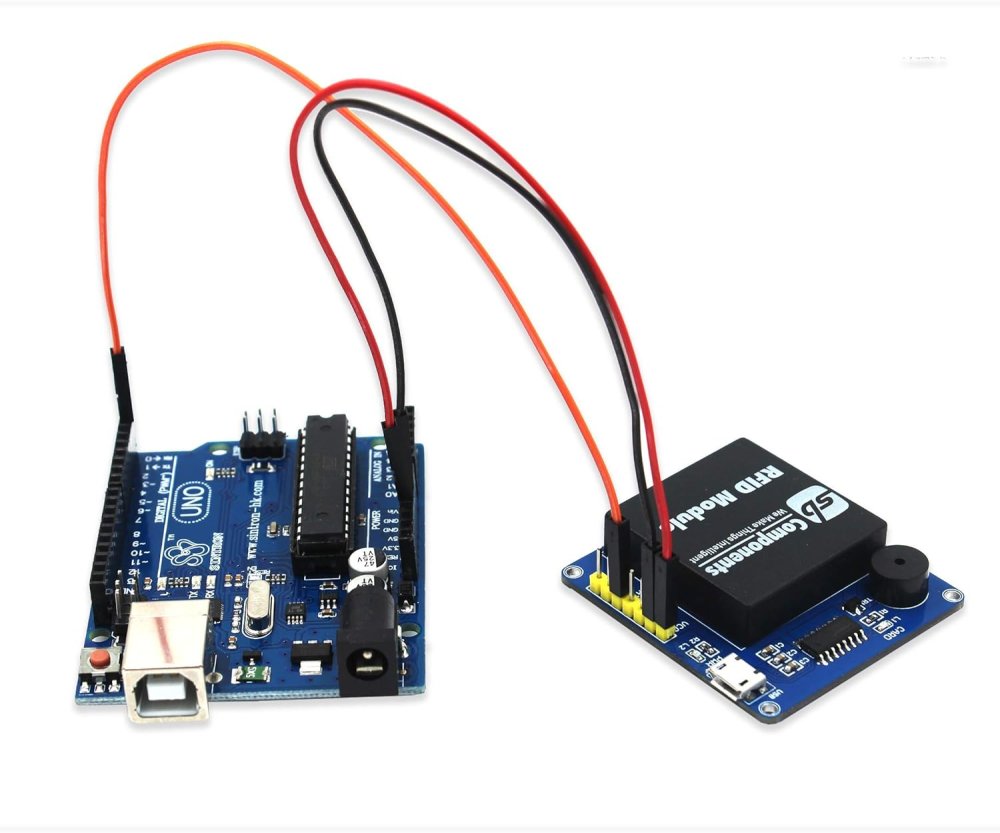

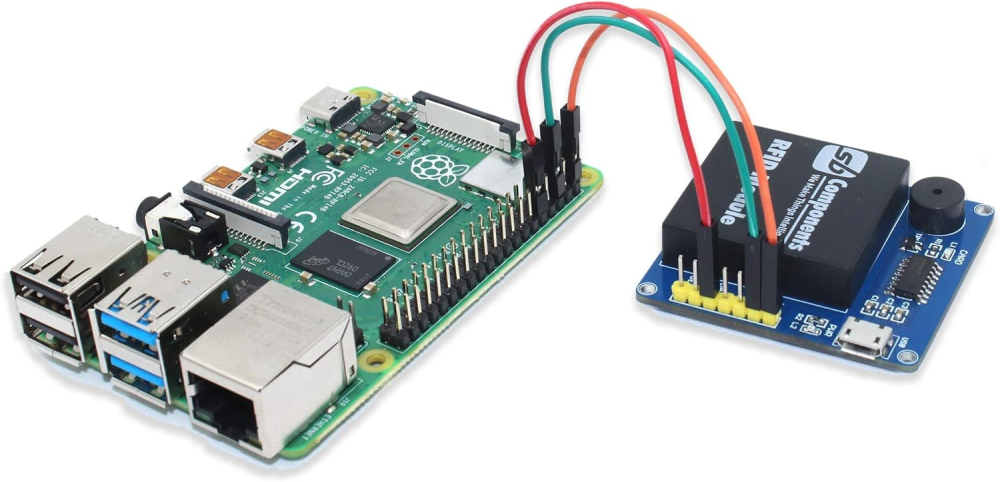

- Universal Compatibility: Works flawlessly with Raspberry Pi, Arduino, STM32, BeagleBone, and other popular microcontrollers.
- Dual Interface Options: Integrated UART (Serial) and USB 2.0 interfaces provide versatile connectivity for both embedded systems and PC-based applications.
- 125kHz Frequency Support: Specifically engineered to read standard 125kHz RFID key fobs and identity cards.

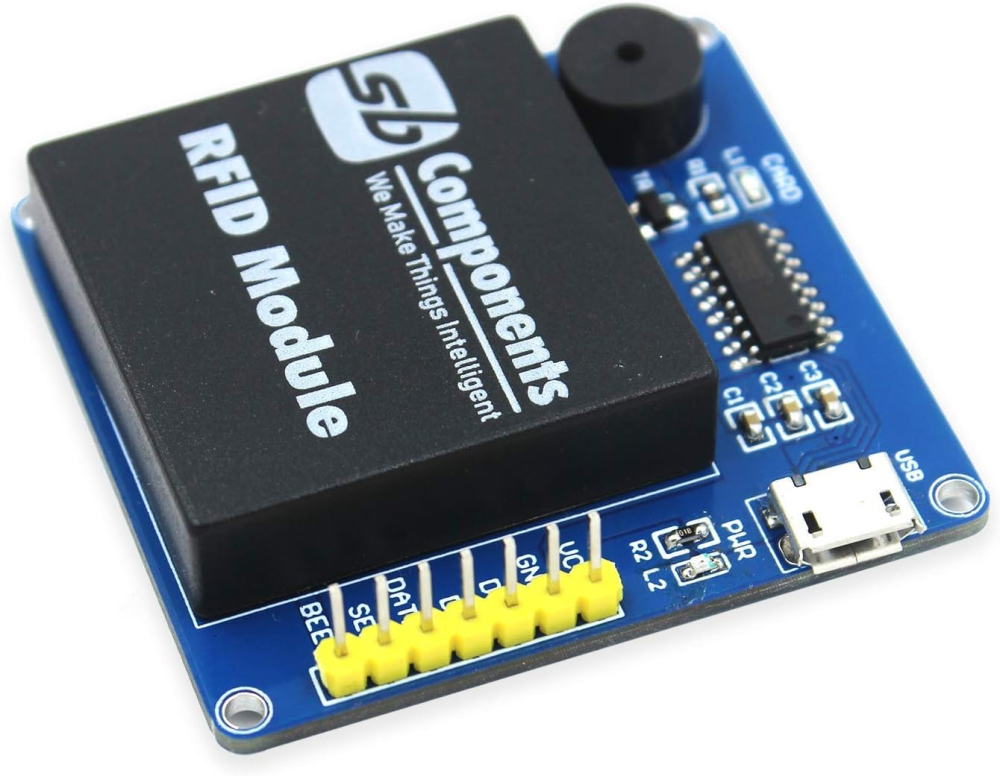

- Built-in Feedback: Features an onboard buzzer and 7-pin header for instant notification and easy hardware interfacing.
- Compact Form Factor: Sleek, space-saving design makes it ideal for integration into portable devices and tight enclosures.
- High Reliability: Provides consistent reading performance for ID badging, secure payment systems, and data storage applications.
Important Information
- Operating Voltage: Runs on a standard 4.5V to 5.5V DC power supply.

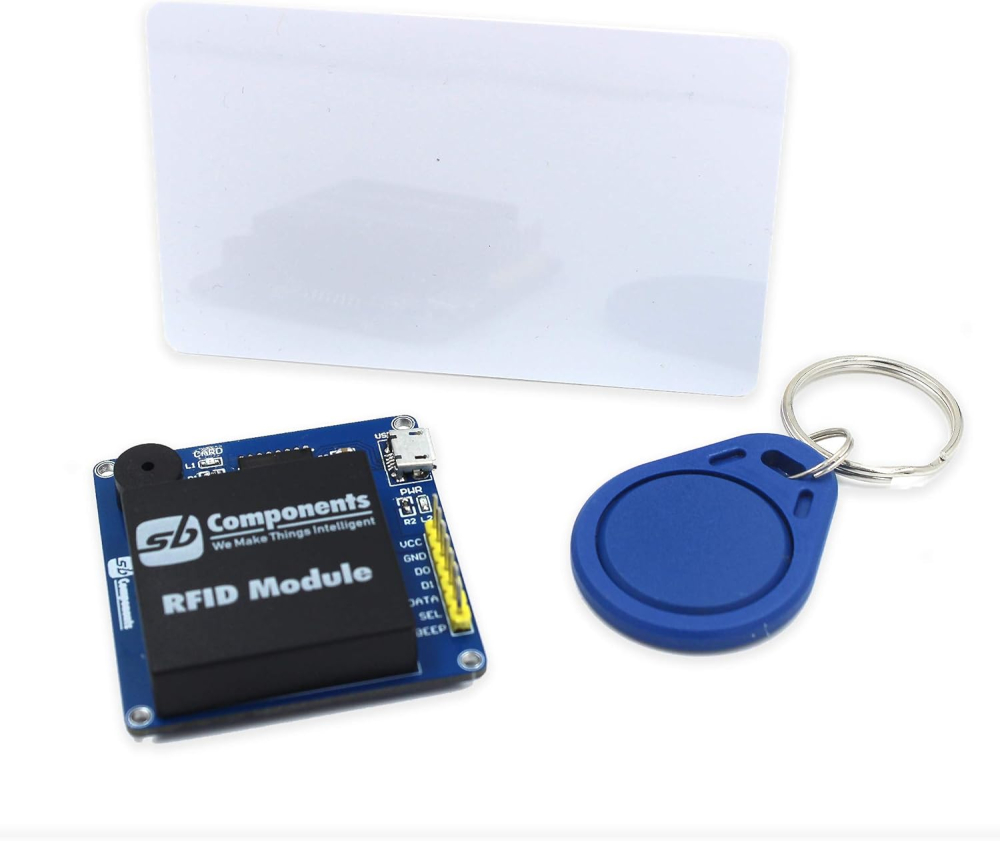

- Kit Contents: Includes the RFID Breakout board; key fobs and tags may be sold separately depending on the selected bundle.
- Baud Rate: Operates at a default baud rate of 9600 bps for stable serial communication.
- Interface Selection: Easily switch between USB and UART modes to suit your specific project requirements.
Why Choose Think Assemble
- Quality Assurance: We source only premium-grade components from trusted manufacturers like SB Components to ensure your projects never fail.
- Expert Technical Support: Our team of specialists is ready to assist you with integration tips and troubleshooting for all your DIY electronics needs.
- Fast & Reliable Shipping: We understand the urgency of your builds and prioritize rapid dispatch to get your parts to your workbench quickly.
- Maker-Centric Experience: From detailed product data to curated kits, we provide everything you need to bring your innovative ideas to life.
Specification
Overview
| Weight | 40 g |
|---|---|
| Dimensions | 9.2 × 7.4 × 2.4 cm |
| Brand | sb components |
| Package dimensions | 9.2 x 7.4 x 2.4 cm; 40 g |
| Item model number | SKU20669 |
| Colour | Blue |
| Operating System | Linux |
| Are Batteries Included | No |
| Item weight | 40 g |
| Guaranteed software updates until | unknown |
| ASIN | B08P4TPT4K |
| Date First Available | 27 Aug. 2019 |
| Manufacturer | sb components |
Customers Love Saving Every Single Day
From first-time shoppers to loyal regulars, our customers agree: everyday low prices beat waiting for a sale. Read their experiences below.
2 reviews for sb components RFID Breakout UART/USB 2.0 Interface Information ID Card Reader RFID Key Fob and Tag Reader for Raspberry Pi, Arduino, STM32, Beaglebone, etc.
Clear filtersOnly logged in customers who have purchased this product may leave a review.
Jared James –
Wired exactly as per instructions (which I had to dig out from GitHub via their website). Ran the script, nothing happens. Tried over USB and still nothing. Don’t waste your money.
horack –
Poor range, minimal documentation, doesn’t support HID 1346 tags
So the good part is that it works. All you need to provide is 5V power, ground and connect DATA to a serial RX pin and read 12 characters at a time at 9600 baud. The documentation doesn’t mention what to do with the other pins (i.e. BEEP). The reading range is bad, with the card and FOB they provide, you pretty much almost have to touch the board (i.e. quarter inch to just maybe half inch). For me the worst part is that it won’t recognize HID 1346 tags which also run at 125 khz. They should list specifically what kind of cards it can (or cannot) read in specs. I wanted to build a door lock for apartment that could respond to the same fobs I use for building entrance. Alas, not with this module. For comparison, I have a cheaper board that can do MIFARE cards that is much faster and has a much better range, of course, that one doesn’t do 125 khz, but its specs were clear on what it can or cannot do.
