eMagTech 10PCS Mini RS232 MAX3232 to TTL Level Converter Serial Module Board Adapter 3~5V MAX3232 Breakout Board Computer Cable Serial Adapters Electronic Components
£11.45
In stock
Streamline your electronic projects with the eMagTech 10-Piece Mini RS232 to TTL Level Converter Set, the ultimate solution for bridging the gap between industrial serial interfaces and modern logic levels. These high-performance breakout boards utilize the reliable MAX3232 chip to provide seamless bidirectional data transmission for microcontrollers like Arduino and ESP32.
- Universal Voltage Compatibility: Operates efficiently across a 3V to 5V DC range, ensuring full compatibility with both 3.3V and 5V microcontroller systems.
- High-Speed Reliable Performance: Integrated MAX3232CSE chip supports stable baud rates up to 120kbps for precise serial communication and hardware debugging.
- Ultra-Compact Mini Design: Featuring a tiny 9.4mm x 15.9mm footprint, these modules are perfect for space-constrained embedded projects and custom enclosures.
- Value 10-Pack Bundle: This bulk set provides engineers and hobbyists with a cost-effective toolkit for data logging, serial networking, and rapid prototyping.
In stock
Shipping & Delivery
-
Courier delivery under £30
Our courier will deliver to the specified address
2-3 Days
From £4.99
-
Prime delivery
Our prime courier will deliver to the specified address
1-2 Days
From £12.99
-
Manufacture Warranty 1 Year
-
Free 30-Day returns
Product Description
Product Overview
Streamline your electronic projects with the eMagTech 10-Piece Mini RS232 to TTL Level Converter Set. Engineered for high-speed reliability and precision, these MAX3232-based breakout boards are the ultimate solution for bridging the gap between professional RS232 serial interfaces and TTL logic levels. Whether you are programming microcontrollers like Arduino and ESP32 or establishing secure communication between a desktop computer and industrial peripherals, these compact adapters ensure seamless data transmission. Designed with a versatile 3V to 5V operating range, this bulk pack provides engineers, hobbyists, and developers with a cost-effective, high-performance toolkit for hardware debugging, data logging, and customized serial networking.
Key Features
- High-Speed Data Transmission: Integrated MAX3232CSE chip supports reliable baud rates up to 120kbps for efficient serial communication.
- Universal Voltage Compatibility: Works flawlessly across a wide 3V to 5V DC range, making it compatible with both 3.3V and 5V microcontroller systems.
- Dual-Channel Functionality: Features two independent channels on each board to facilitate comprehensive RXD and TXD signal processing.

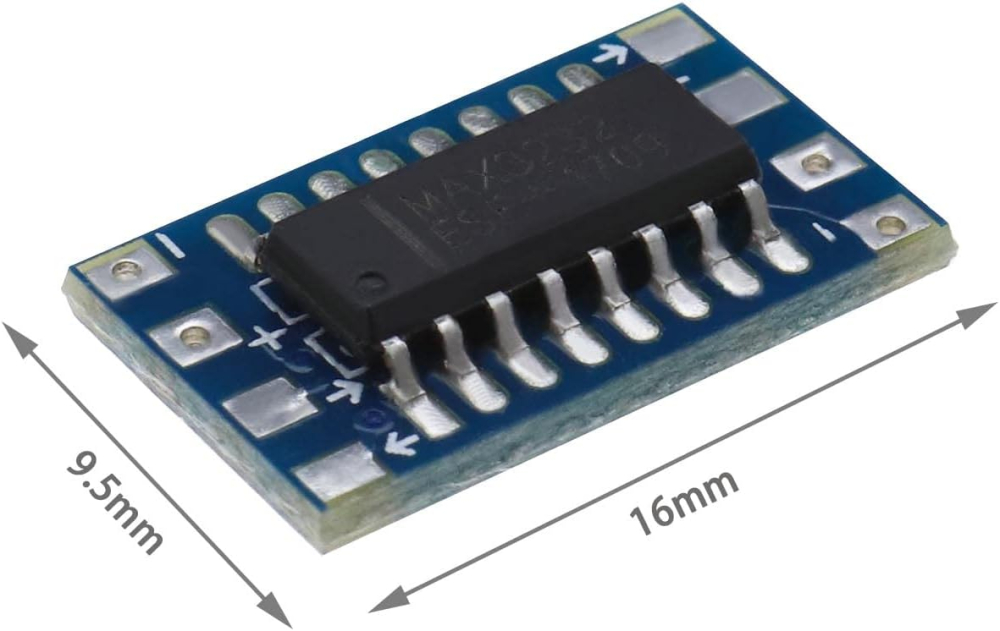

- Ultra-Compact Footprint: Measuring just 9.4mm x 15.9mm, these mini modules are perfect for space-constrained embedded projects and custom enclosures.

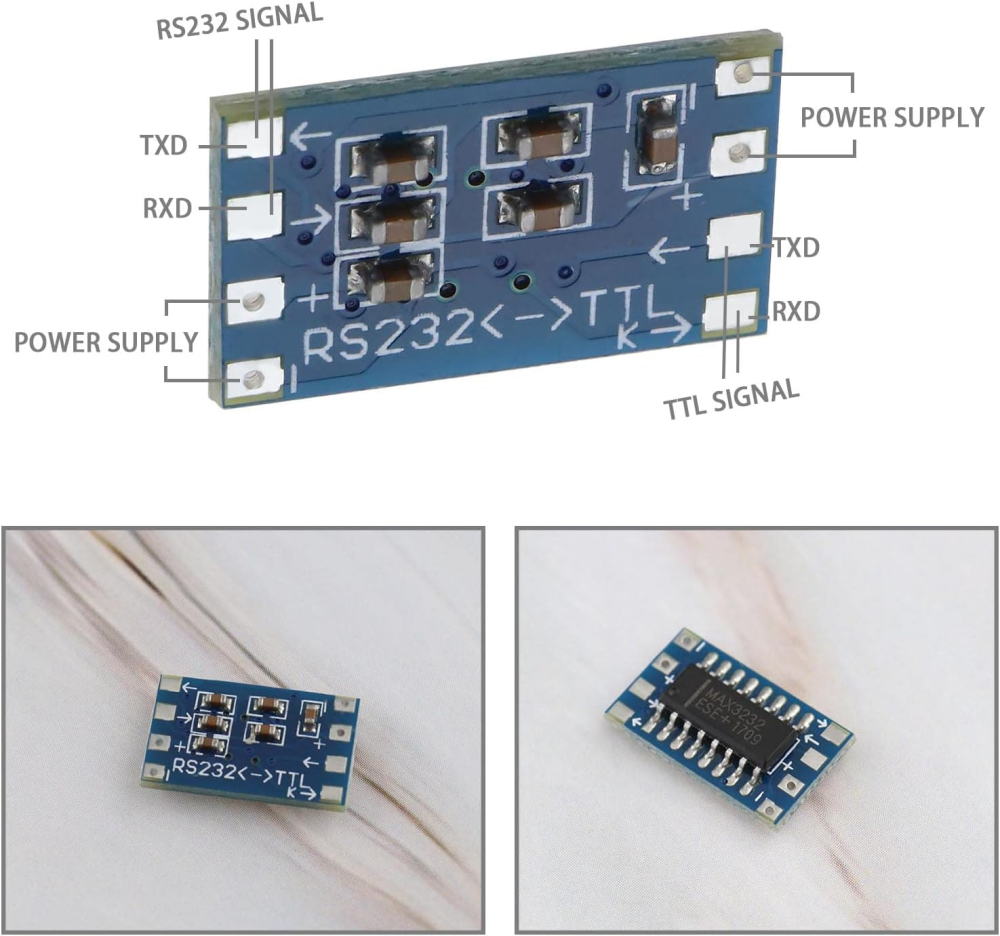

- Intuitive Signal Flow: Clearly marked silk-screen arrows indicate signal direction, with inward flow for input and outward for output to prevent wiring errors.
- Bi-Directional Conversion: Effortlessly translates ±12V RS232 signals to safe TTL logic levels for microcontrollers and sensors.
Important Information
- Pack Quantity: This listing includes a value pack of 10 individual MAX3232 level converter modules.
- Power Connection: Power supplies on both sides are internally connected; you only need to connect one side to power the entire module.
- Port Proximity: Logic levels are determined by proximity; the area near the RS232 markings is RS232 level, and the area near the TTL markings is TTL level.
- Baud Rate Limit: For optimal signal integrity and stability, it is recommended to maintain speeds at or below 120kbps.
