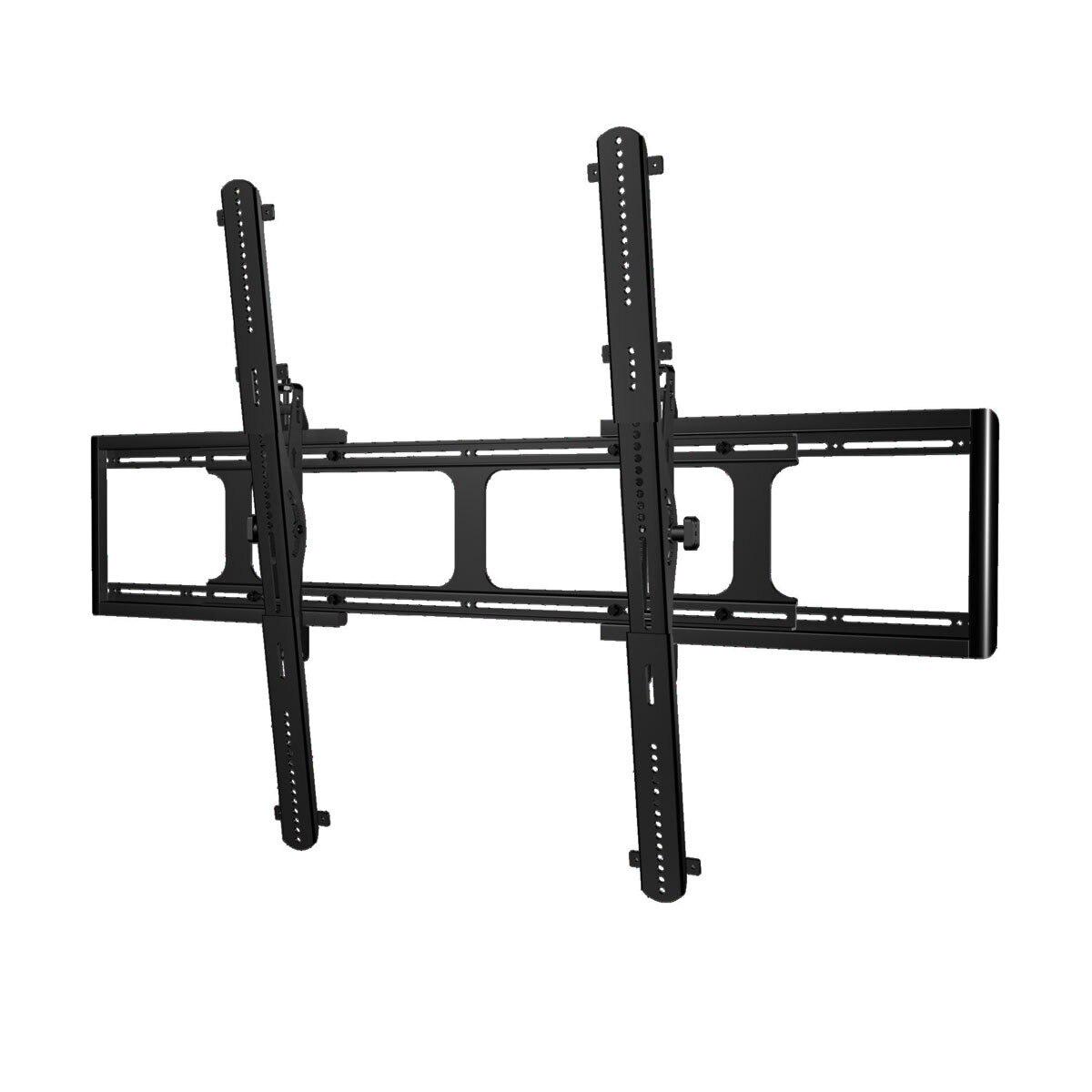

Sanus 40-110 Inch Tilting X Large TV Wall Mount, VXT7-B2

– Technical Drawing

– Instruction Manual

The VXT7 features an adjustable design with an expandable wall plate to offer a custom fit for most TVs, up to 300 lbs. Positions TV just 2.5 from the wall for a clean, flush appearance. ProSet Plus post install height and level adjustments allow for up to one full inch of height and level adjustment. Virtual Axis Fingertip tilt allows for easy TV adjustments and quick access to cables.

Features:

– Adjustable design that expands to offer a custom fit for most TVs up to 136 kg

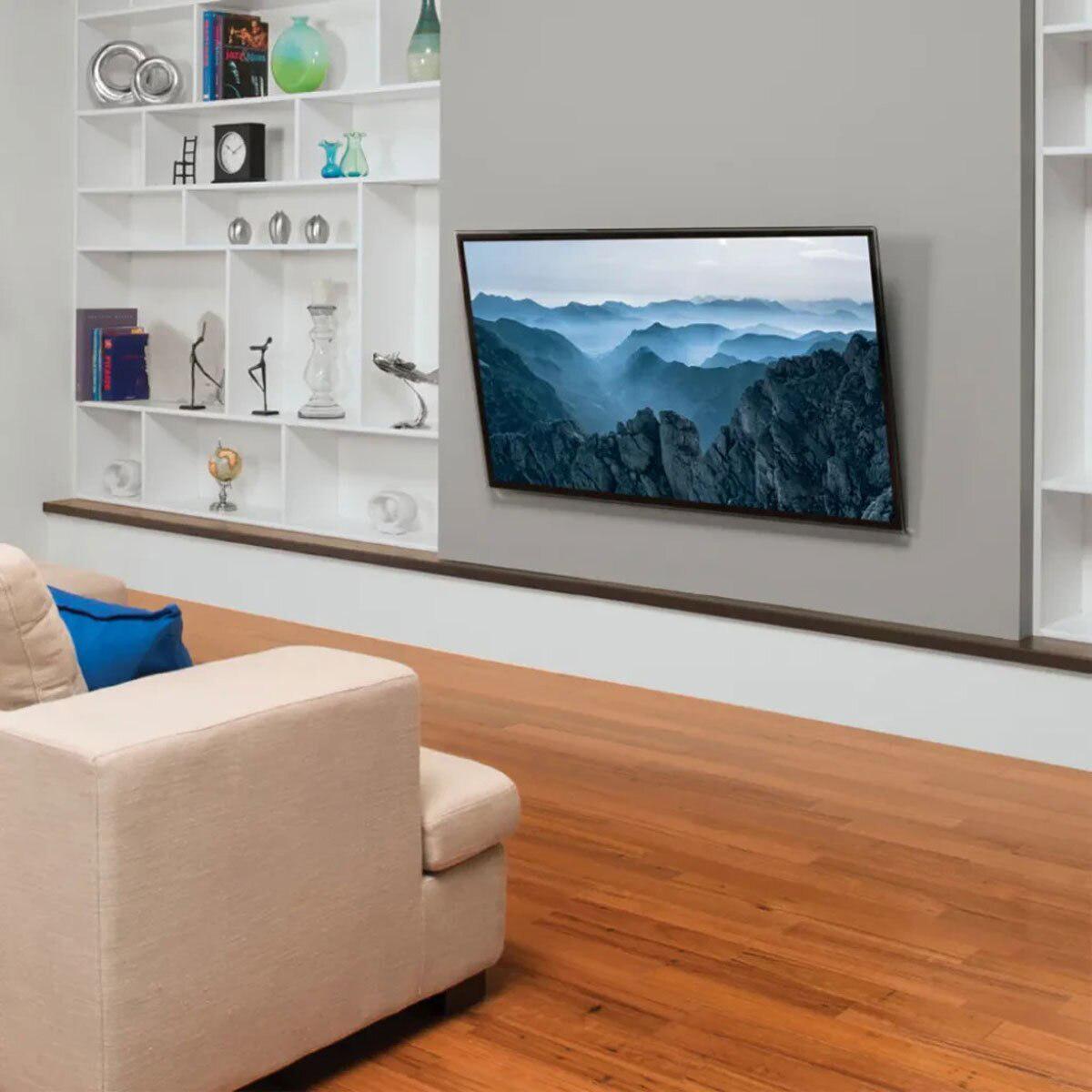

– Seamlessly places TV just 2.4″ from the wall and blends with TV and décor.
– Easily adjust your TV without tools.
– Sturdy wall mount, built on a solid steel frame.

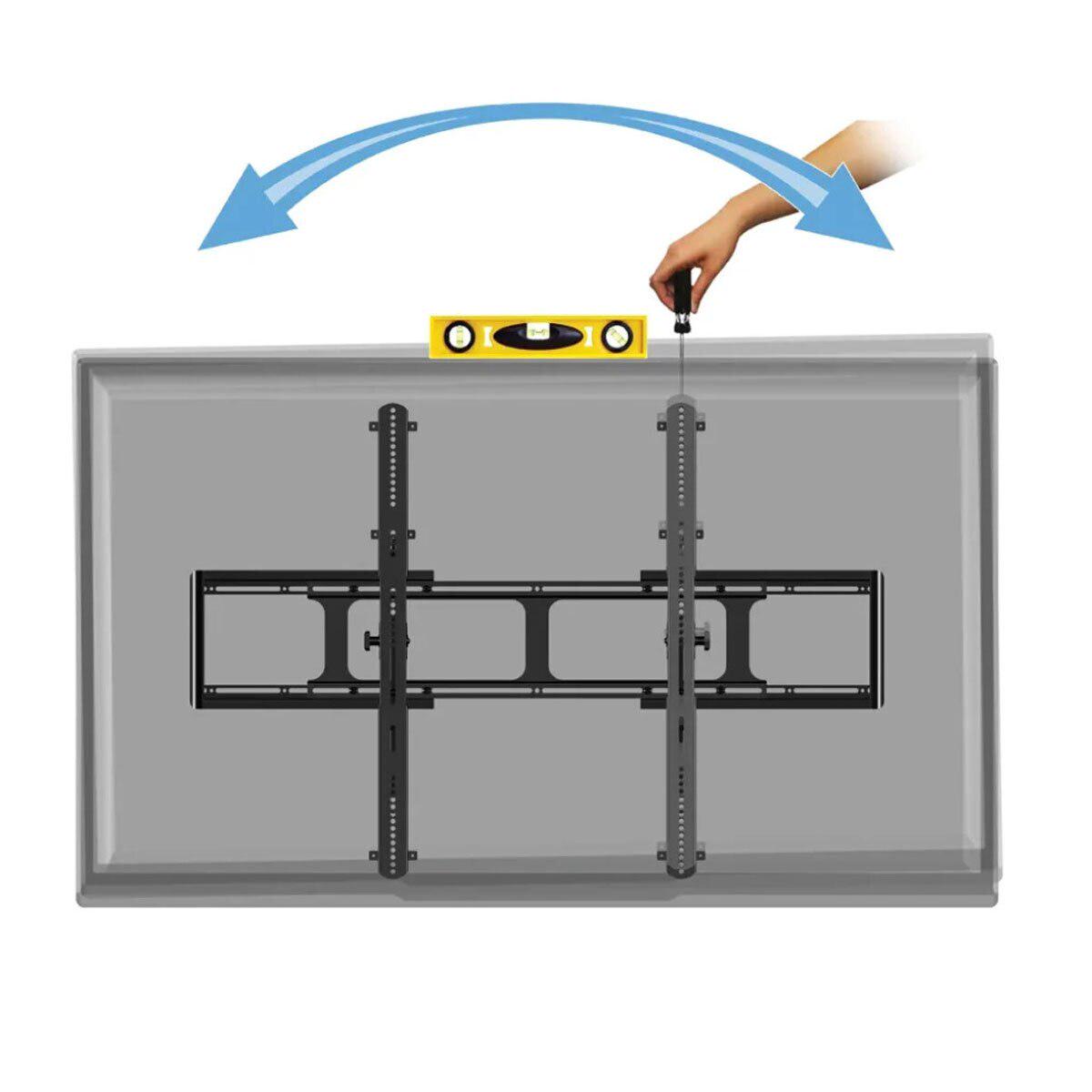

– Leveling adjustments allow TV to be perfectly positioned after hanging.

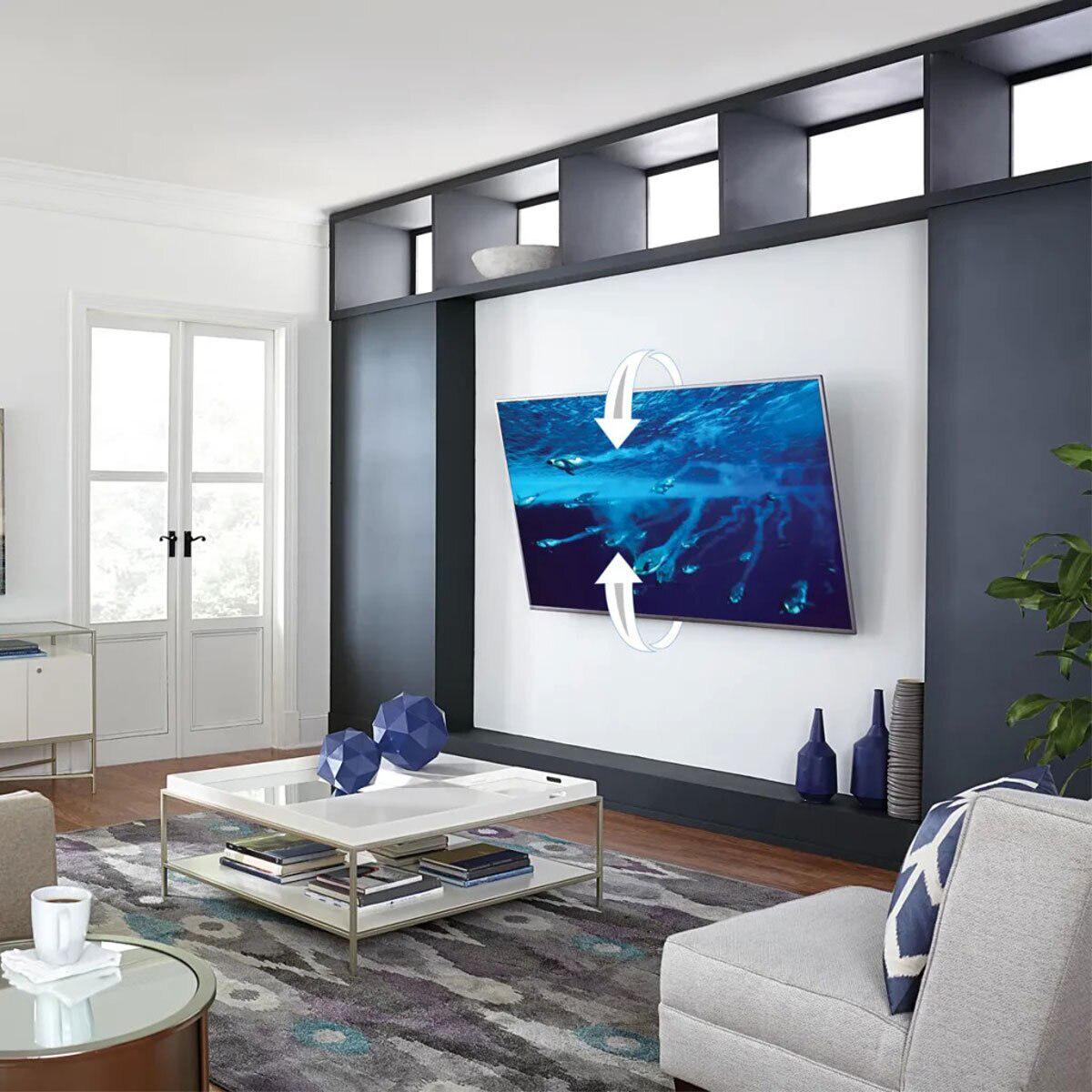

– Tilt your TV for perfect viewing from the couch or floor.

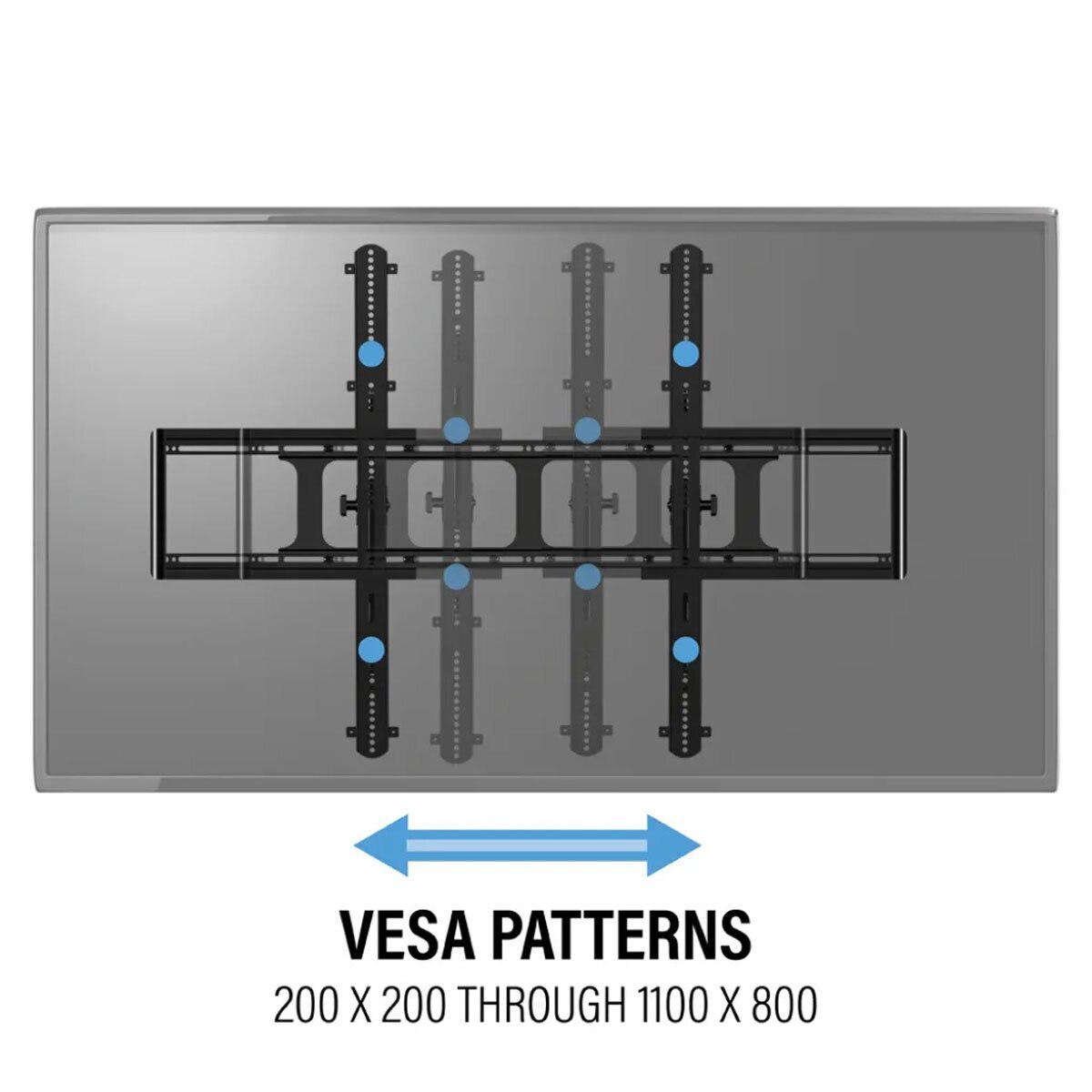

Model support below VESA patterns:

VESA 200 x 200
VESA 200 x 300
VESA 200 x 400
VESA 300 x 200
VESA 300 x 300
VESA 300 x 400
VESA 400 x 100
VESA 400 x 200
VESA 400 x 300
VESA 400 x 400
VESA 400 x 500
VESA 400 x 600
VESA 500 x 200
VESA 500 x 300
VESA 500 x 400
VESA 500 x 500
VESA 500 x 600
VESA 600 x 200
VESA 600 x 300
VESA 600 x 400
VESA 600 x 500
VESA 600 x 600
VESA 600 x 700
VESA 600 x 800
VESA 700 x 200
VESA 700 x 300
VESA 700 x 400
VESA 700 x 500
VESA 700 x 600
VESA 700 x 700
VESA 750 x 400
VESA 800 x 200
VESA 800 x 400
VESA 800 x 500
VESA 800 x 600
VESA 800 x 800
VESA 900 x 600
VESA 900 x 800
VESA 1000 x 400
VESA 1000 x 800
