Flow Switch, 15mm, 0.5L/Min, 250V AC-

868 Items sold in last hour

Product Condition: Brand New Vendor: Think Assemble

£23.99

In stock

Your order qualifies for free shipping!

Add to compare

Add to wishlist

161 People watching this product now!

Manufacture Warranty 1 year

Fast & Secure Shipping

Free 30-Day returns

Authentic Branded Product

Payment Methods:

Description

Product Overview

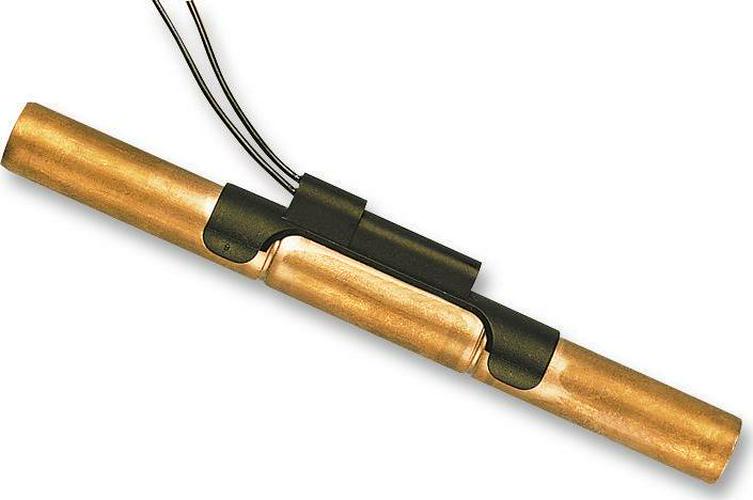

FS-10 is a FS series Flow Switch in 15mm copper pipe. Suitable for mains water control, power shower, central heating systems, leak detection and cooling systems.

– Minimal pressure drop
– Operates from a small head of water
– Vertical mount
– Reed Switch reliability, meets UL 94-HB flammability rating and easy installation
– Form A -SPST contact form
– Ruthenium contact material
– 15W maximum watts, 300VDC max switching Voltage, 1A max switching current
– 85°C operating temperature
– Black/Black 2 x 16/0.2mm PVC insulated 1m long cable
– 0.5litres/min flow rate and 10BAR operating pressure

Sensor Type: Flow Switch
Flow Rate Max: 0.5l/min
Operating Pressure Max: 10bar
Media Type: Air, Water
Pipe Size: 15mm
Sensor Mounting: Vertical Mount
Operating Temperature Max: 85C
Product Range: FS Series
Manufacturer: TE CONNECTIVITY
Manufacturer Part No: FS-10
Order Code: SN36477
Technical Datasheet: FS-10 Datasheet
