Atlas Thyristor and Triac Analyser-

Product Overview

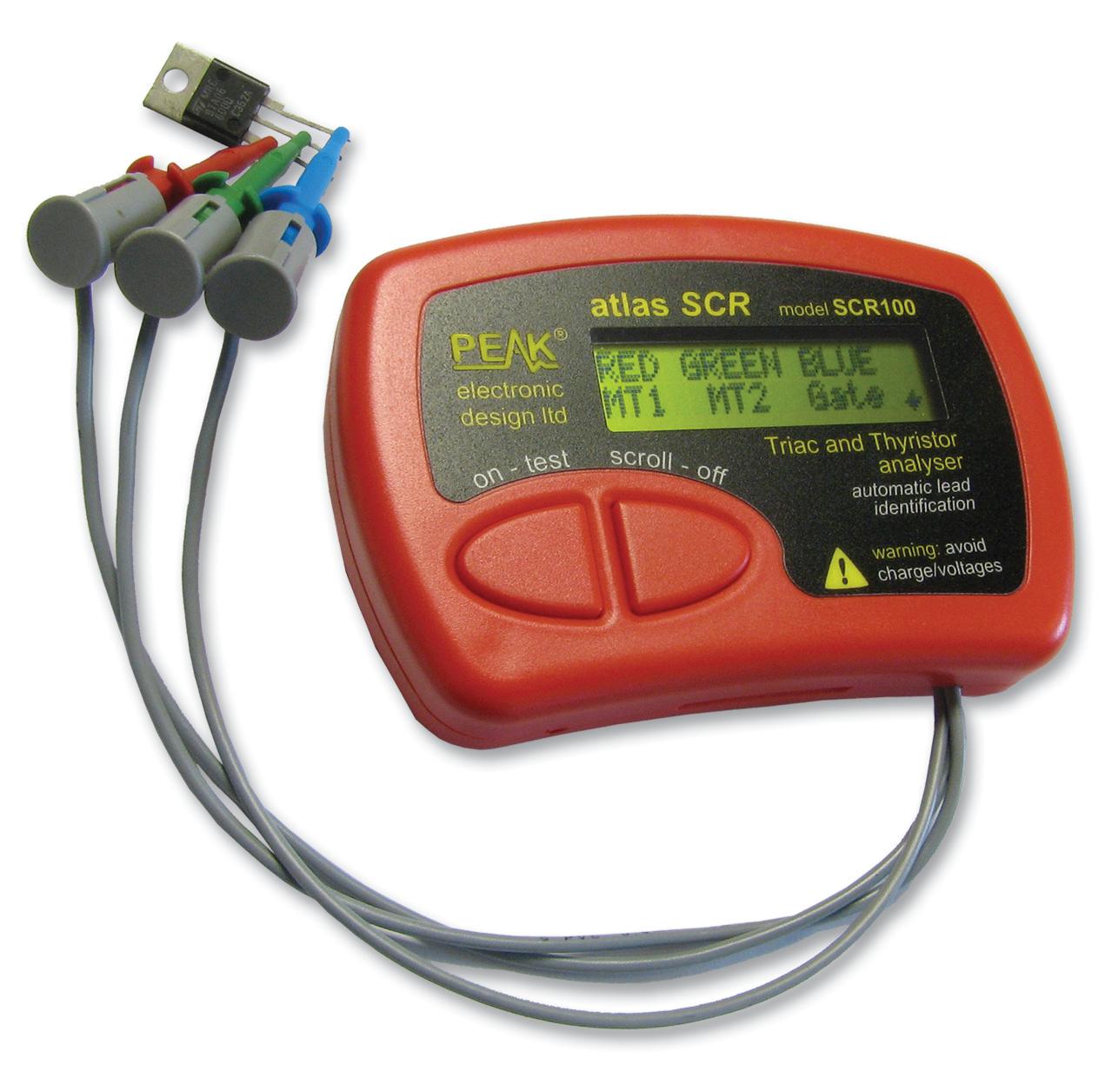

The Peak Atlas SCR100 is specifically designed for the rapid identification and analysis of a very wide range of thyristors and triacs. Just connect the test probes any way round and press test. The Atlas SCR100 will instantly identify the type of part, identify the pinout, categorise it s gate sensitivity and measure the gate voltage drop. Gate current is autoranging from 100 A to 100mA while the load test condition is maintained at 12V 100mA regardless of battery condition.

– Automatic type identification (Triac or Thyristor)
– Automatic pinout identification, just connect any way round
– Gate sensitivity display from 100 A to 100mA
– Consistent load test conditions of 12V at 100mA, even for a dying battery
– Measures gate voltage drop
– Temp, op. max: 40°C
– Temp, op. min: 10°C
– ROHS, WEEE and CE compliant
– Dimensions (WxHxD): 103x72x20mm

Contents

Contents: Analyser, probes that connect to TO220, TO3, TO92 and bolt styles, batteries and uder guide
