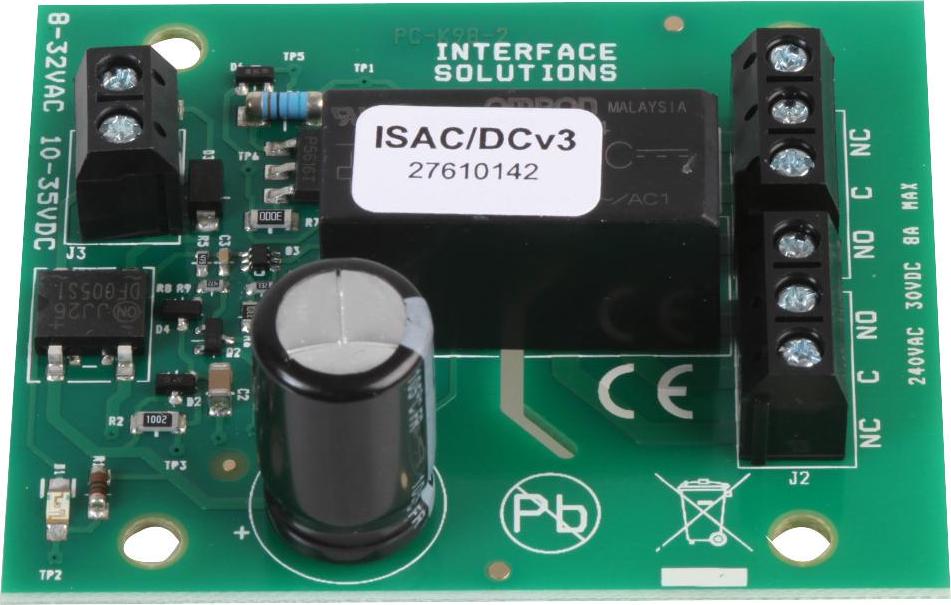

AC/DC v3 Relay Double Pole-

Product Overview

A versatile relay that will operate on AC voltages ranging from 8-32V and also on DC voltages from 10-35V. A simple to fit module wherever a dry contact, voltage free switching is required or where there is a need for higher than usual currents and voltages to be switched.

– Double Pole with screwed terminals
– LED indication
– Supply voltage: 8-32V AC/ 10-35V DC
– Coil resistance: 360
– Nominal current: 20mA
– Double pole change over contacts rating: 8A @240V AC; 8A @ 30V DC
– Minimum switching current: 10mA
– Dimensions (HxWxD): 30x69x56mm
