4MHz Crystal, 11mm x 4.7mm, 50ppm, 30pF, 20ppm-
211
Items sold in last hour
£7.99
In stock
In stock
759
People watching this product now!
-
Manufacture Warranty 1 year
-
Fast & Secure Shipping
-
Free 30-Day returns
-
Authentic Branded Product
Payment Methods:
Description
Product Overview

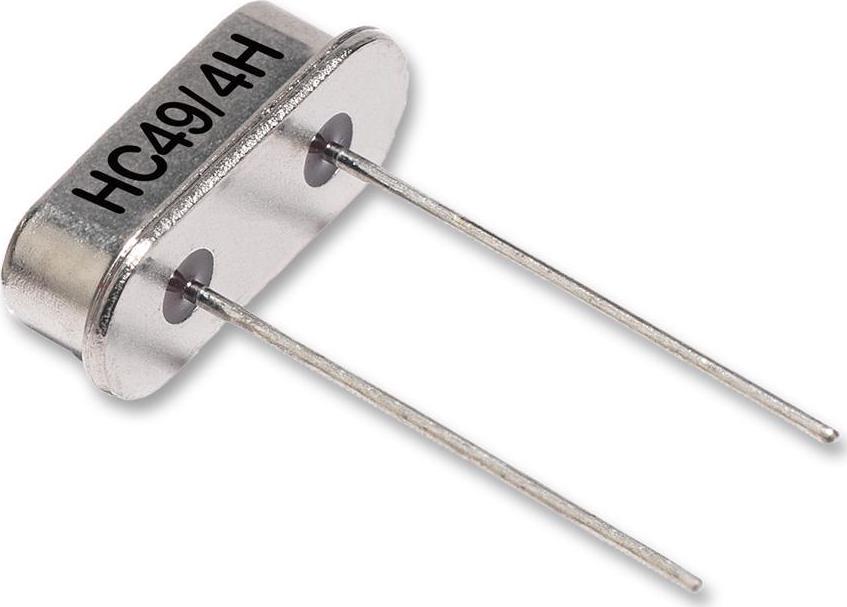

The LFXTAL003074 is a Crystal with resistance welded, hermetically sealed in an inert atmosphere, glass to metal seals on leads. The HC-49/4H series crystal with shock 3 times in each of 3 mutually perpendicular planes and vibration 30mins in 3 mutually perpendicular planes.
– Fundamental vibration mode
– 130 Maximum equivalent series resistance
– 7pF Maximum shunt capacitance
– 500µW Maximum drive level
Applications
Clock & Timing
- Frequency Nom: 4MHz
- Crystal Case: Through Hole, 11mm x 4.7mm
- Frequency Stability + / -: 50ppm
- Load Capacitance: 30pF
- Frequency Tolerance + / -: 20ppm
- Product Range: HC49/4H Series
- Operating Temperature Min: -10C
- Operating Temperature Max: 60C
- Manufacturer: IQD FREQUENCY PRODUCTS
- Manufacturer Part No: LFXTAL003074
- Order Code: SC18347
- Also Known As: 830003074B
- Technical Datasheet: LFXTAL003074 Datasheet
Specification
Overview
| Dimensions | 0.43 × 0.19 cm |
|---|---|
| Brand |
IQD FREQUENCY PRODUCTS |
