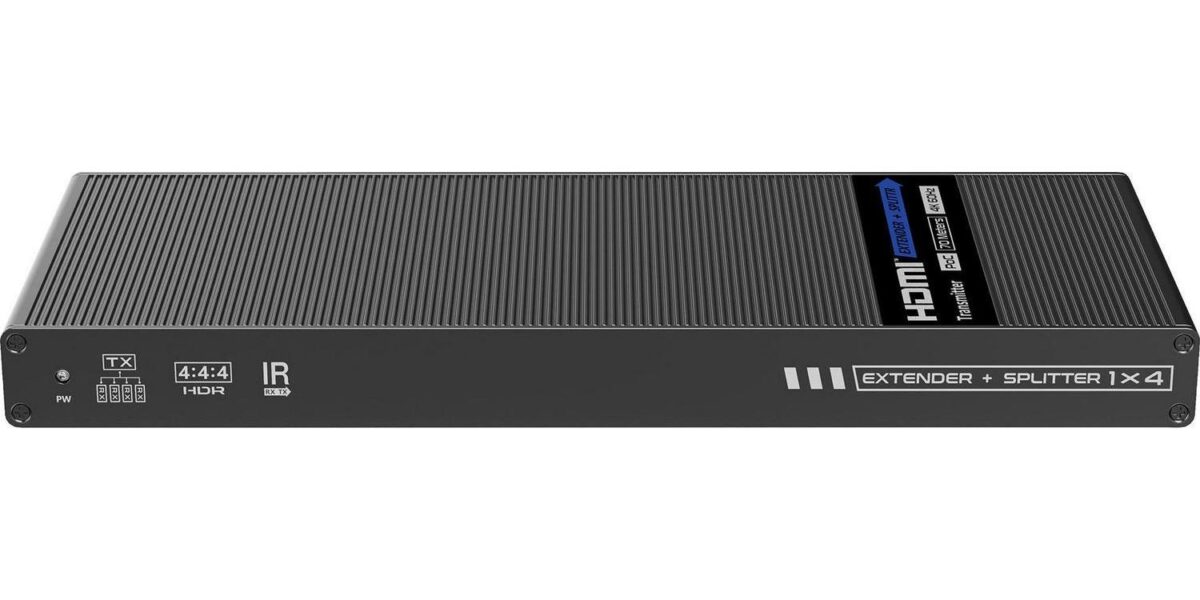

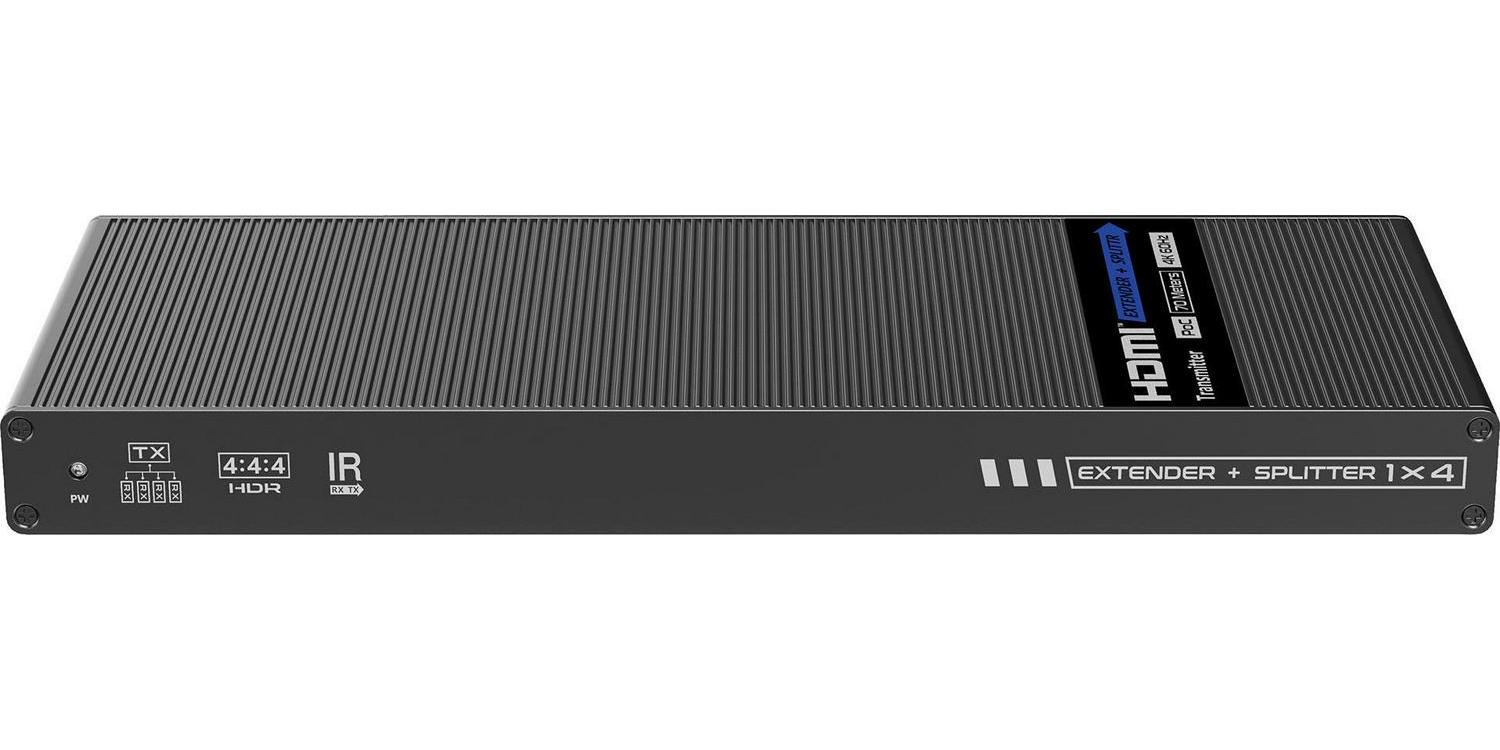

4 Way 4K UHD 60Hz HDMI 2.0 Extension Splitter with IR, 70m-

Product Overview

Comprehensive AV distribution solution that splits and extends a 4K HDMI source over standard network cable for up to four identical outputs. Visually lossless image compression with ipcolor IMAGE standard, delivering superior results when compared with other compression technologies.The extender provides a HDMI loop display port as well as IR passthrough for convenient control at remote location. Suitable for commercial and educational applications with additional support for RS232 control that allows for integration into professional systems.

– Transmission distance up to 70m using standard Cat6/7 network cables
– HDMI loop-through for simultaneous local and remote display
– Supports resolutions up to 4K UHD @60Hz
– Dolby Digital 5.1, DTS/DTS-HD and LPCM audio format support
– EDID passthrough with DIP switches for manual settings
– Supports RS232 command control
– Passthrough IR support (20-60kHz)
– HDMI 2.0 and HDCP 2.2 compliant
– Integrated PoC (Power over Cable) support, receivers do not need additional PSUs
– Durable metal housings with lightning, surge and ESD protection

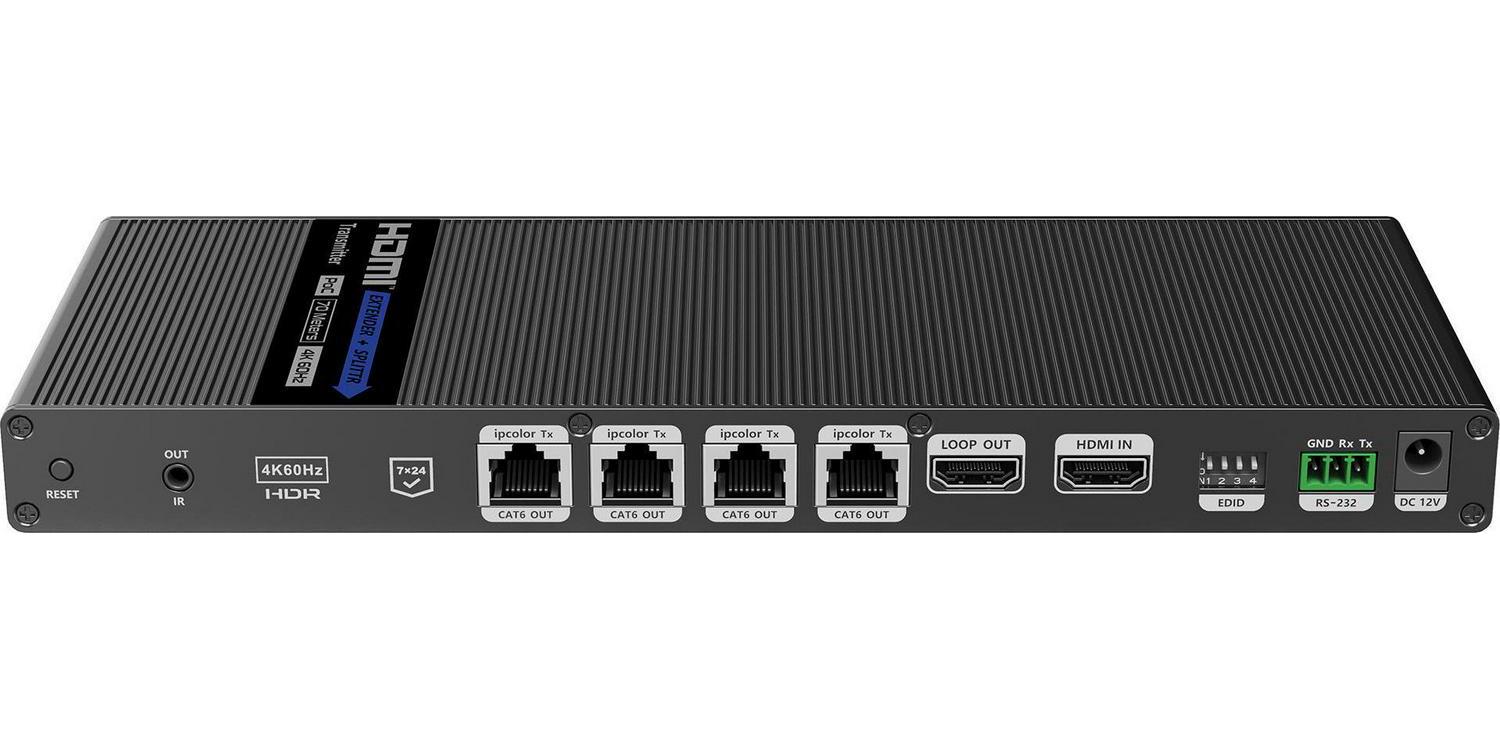

– Transmitter connections: HDMI in/out, 4x RJ45 out, 3.5mm IR out, RS232
– Receiver connections: HDMI out, RJ45 in, 3.5mm IR in
– Transmitter dimensions (HxWxD): 24x264x104mm
– Receiver dimensions (HxWxD): 26x106x99mm
– Supplied with adaptor ‘ears’ for rack mounting

Contents

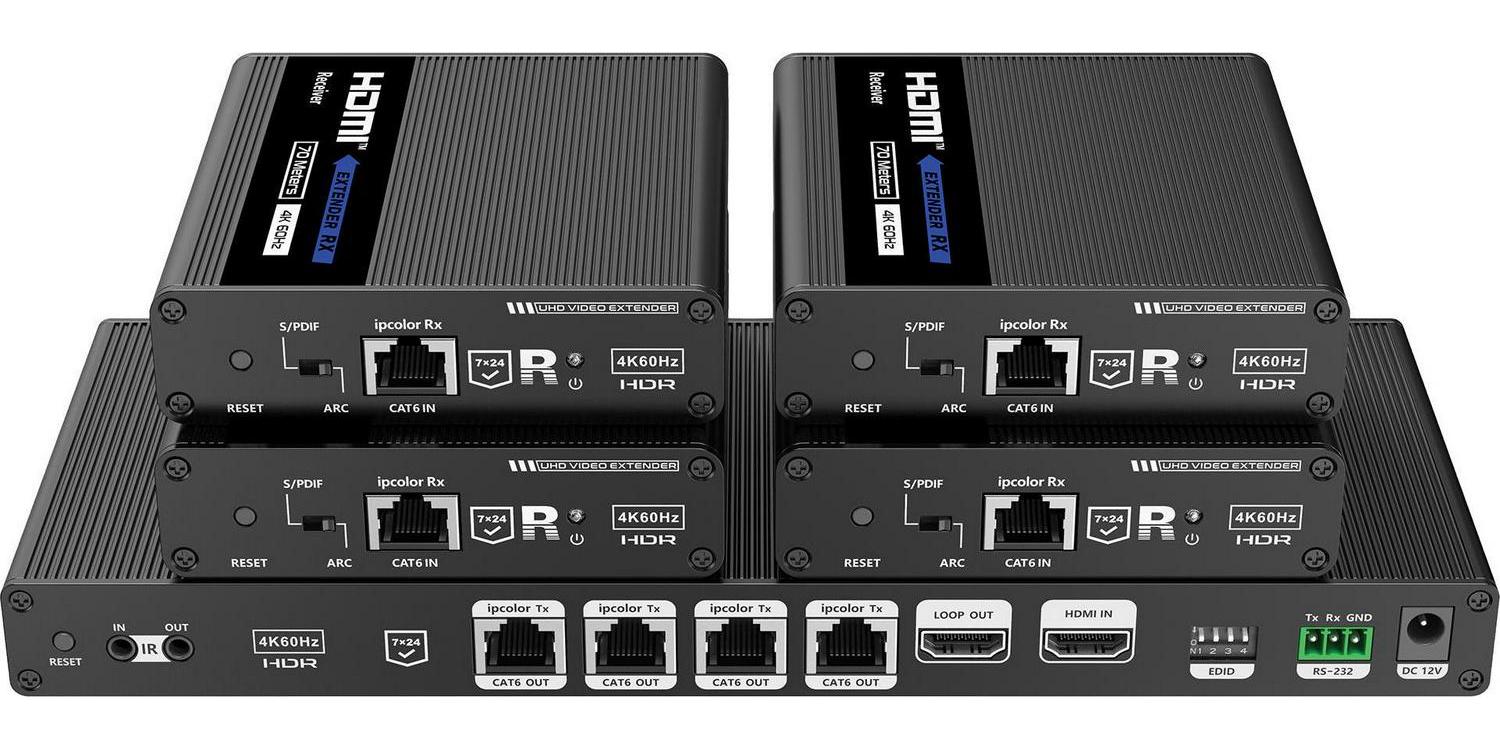

Transmitter, 4x receiver, AC adaptor, IR extender, IR receiver, RS232 terminal block, mounting kit and user guide

Footnotes
Note: Receiver provides power input connection in event network does not support PoC, no additional PSU included.
