18 1200W Sub-Bass Driver 8 Ohm-

Product Overview

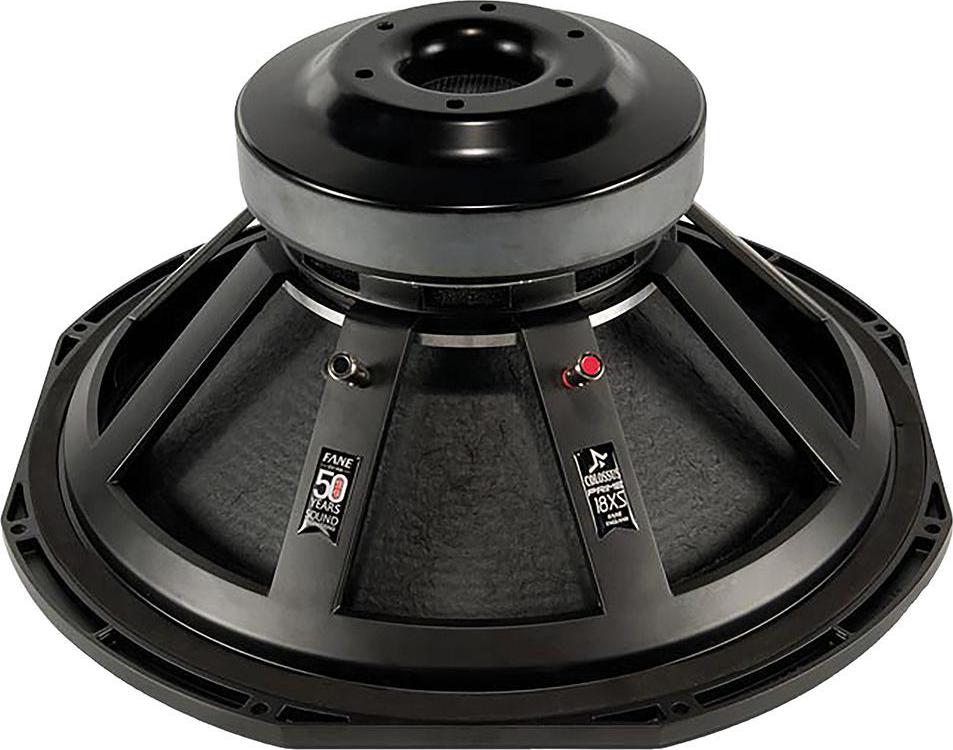

The Prime 18XS is intended for use as a high output bass driver in multiway systems. It features a 4″ ‘sandwich’ (inside and outside windings) voice coil, immersed in a symmetric magnetic field yielding increased linearity and lower distortion. This, coupled with laminated silicone suspensions, a large Xmax of 12mm with peak to peak travel of 60mm, all ensure fast accurate bass at high levels of excursion. The cone membrane, manufactured from polycellulose, is much stronger and more durable than conventional paper pulp alternatives. This allows the driver to combine high sensitivity with the structural integrity required to produce undistorted low frequencies at extreme sound pressure levels. The driver handles 1200W continuous power and can cope with peaks in excess of 4800W. This is due to advanced thermal management in the form of vented die-cast chassis and increased motor system venting. These measures effectively remove heat from the voice coil, resulting in extremely low power compression. The Prime 18XS can deliver bass down to 29Hz in a 200L ported enclosure.

– High grade Y35 ferrite magnet motor structure with Low interference flux path
– Vented chassis and motor design provides efficient thermal management and extremely low power compression
– Dual silicone laminated suspension system offers increased linearity for tight, punchy bass reproduction at extreme SPL
– 12mm Xmax with 64 mm peak-to-peak travel
– Fibre loaded, UK manufactured cone offering increased strength, durability and performance
– Ideal for bass reflex and scoop enclosure designs from 125 to 400L
– Aluminium demodulation ring
– 4″ Copper voice coil
– Frequency response: 35Hz to 500Hz
– Baffle hole diameter: 16.53″
– Chassis: Die-cast Aluminium
– Output power: 4800W peak
– EBP: 81.68Hz (suitable for closed speakers)
– Dimensions (DxDia): 216x420mmØ
– Weight: 15.3kg

Applications

Audio, Public, Hobby & Education, Domestic, Music, Installations, Education
