USB Galvanic Isolator with DIN Rail Mount, Up to 6KV-

Product Overview

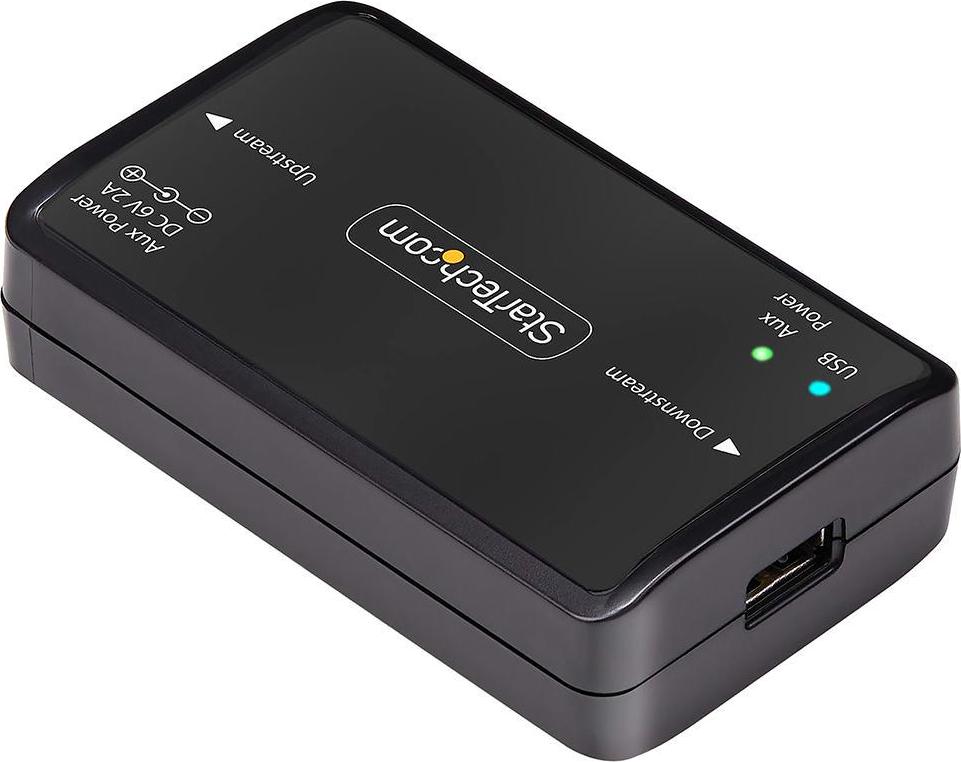

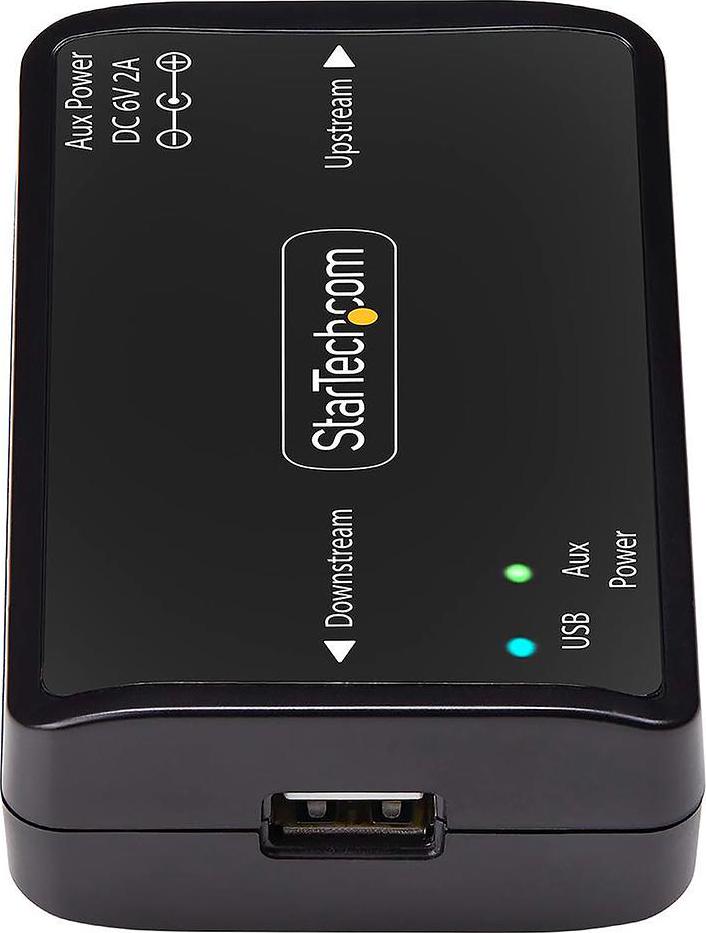

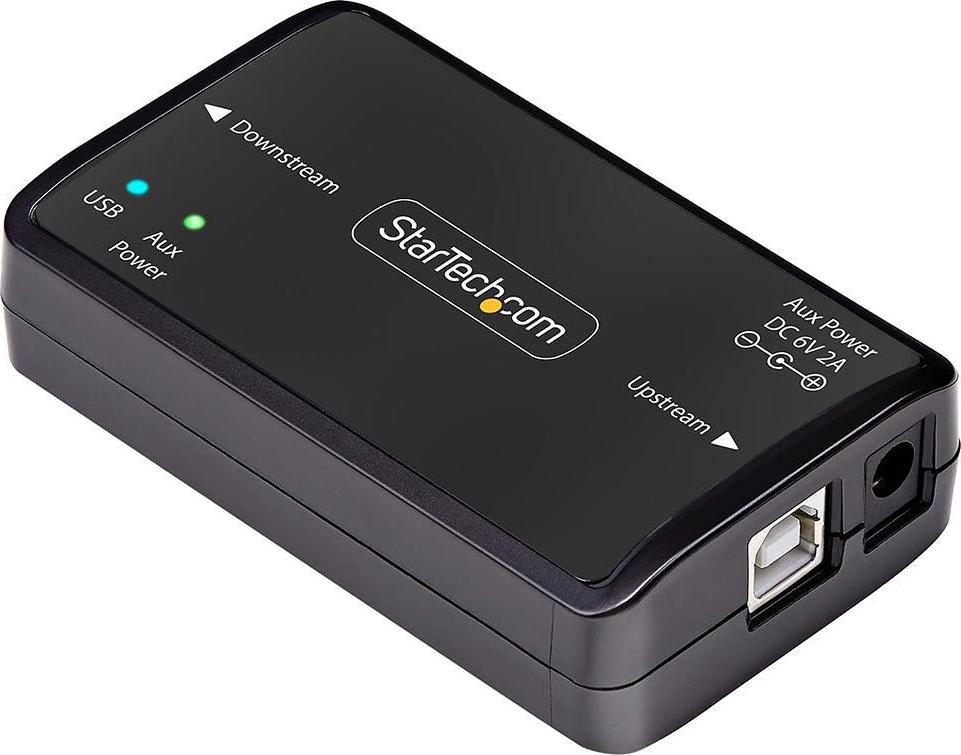

The Startech U1-USB-ISOLATOR is specially designed to safeguard sensitive computing equipment and USB devices from harmful voltage spikes, ground loops and electrical interference. Ideal for mission-critcal devices, it is capable of protecting hardware with 6000V isolation for up to 1 minute. With its plug & play inline design, the isolator needs no additional setup or software configuration to be effective.

– Protects connected USB device from ground loops and voltage spikes
– Up to 6000V DC isolation for 1 minute
– Supports up to USB 2.0 (12Mb/s) and 5V, 250mA connections
– Wide operating temperature range (-30°C to 75°C), suitable for industrial environments
– Type M barrel connection for optional 5V 500mA power supply (not included)

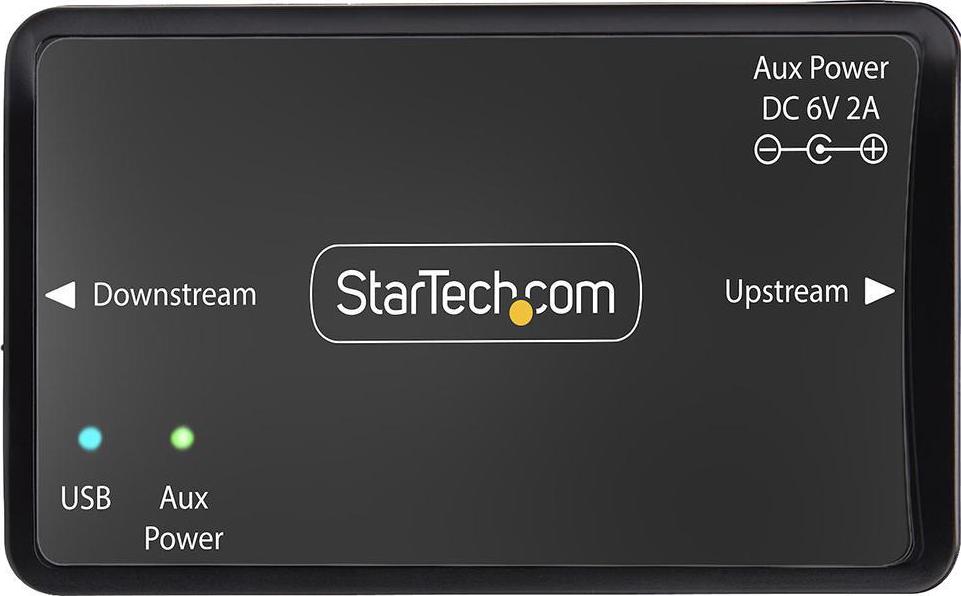

– LED power and status indicators
– Compact and durable, IP40-rated ABS housing
– Level 4 ESD protection (±15kV air, ±8kV contact)
– Meets CE/LVD (2014/35/EU) and IEC/EN 62368-1 certifications to comply with electrical regulations

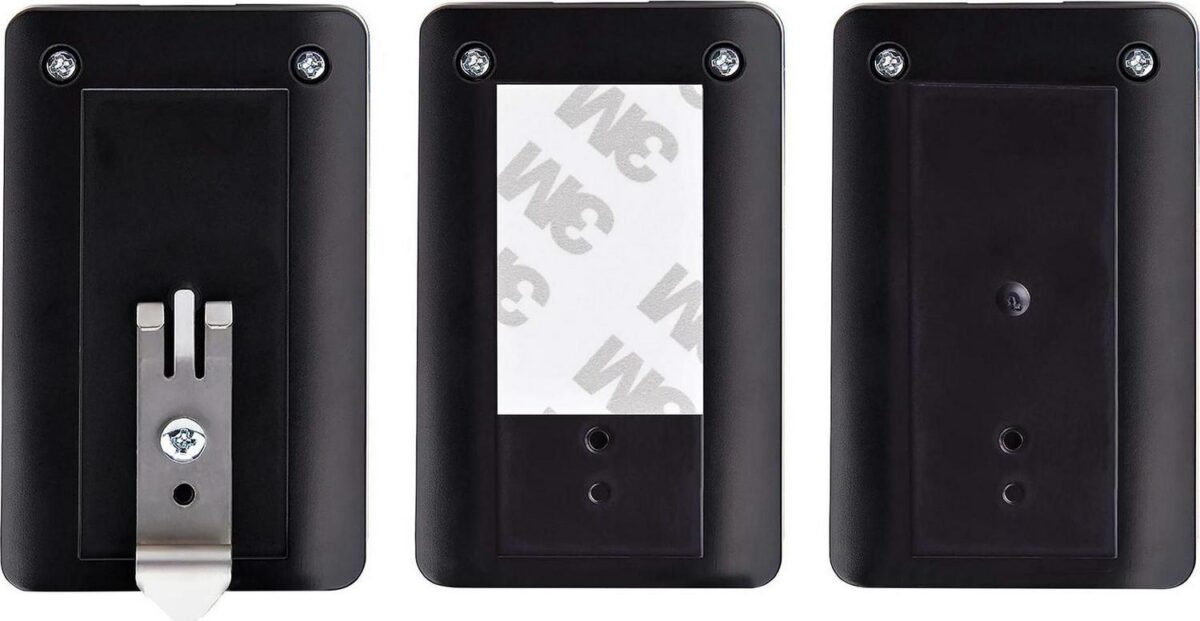

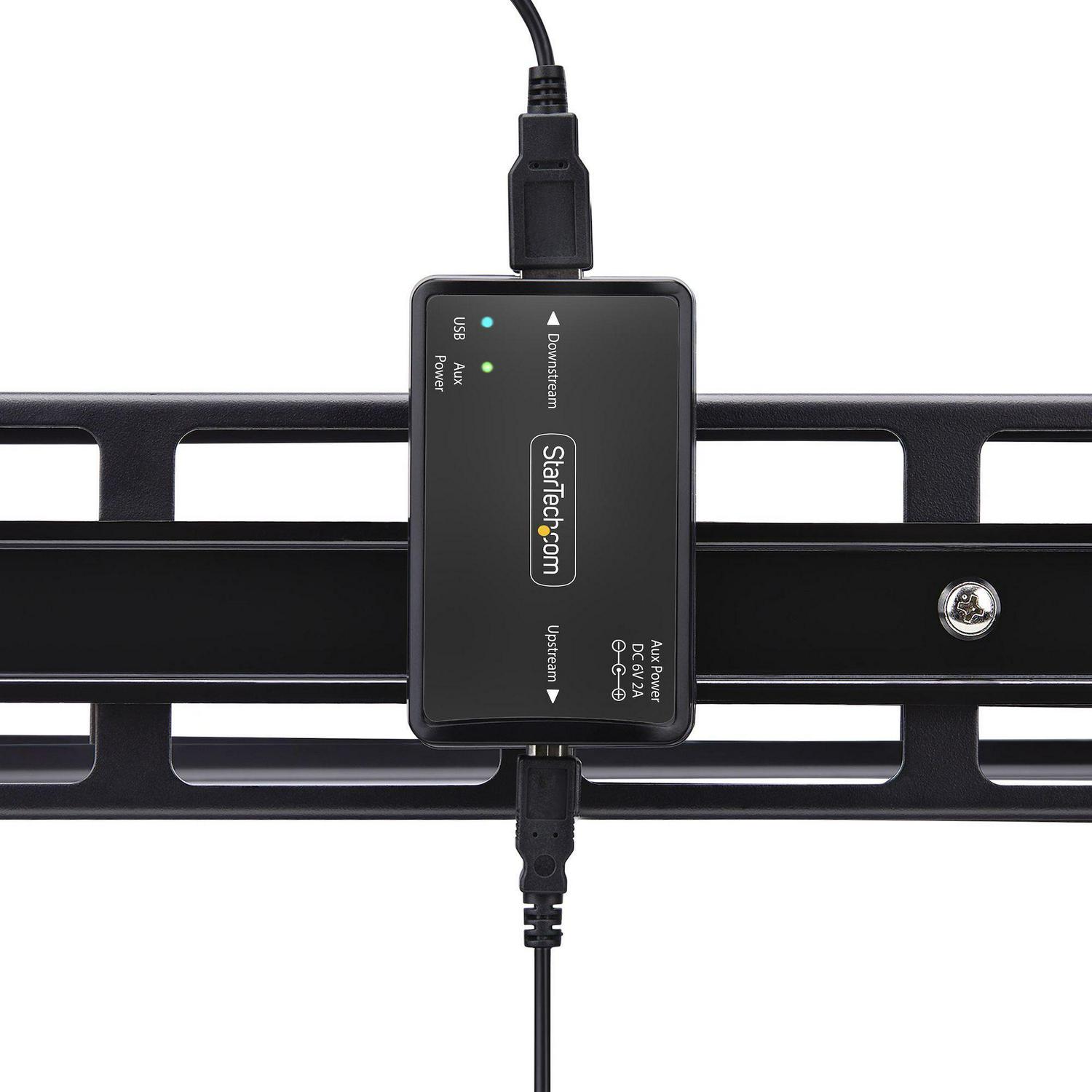

– DIN Rail mountable (mounting kit included)
– Fully TAA-compliant design
– Dimensions (HxWxD): 24x89x55mm
– 2 Year manufacturer warranty

Contents

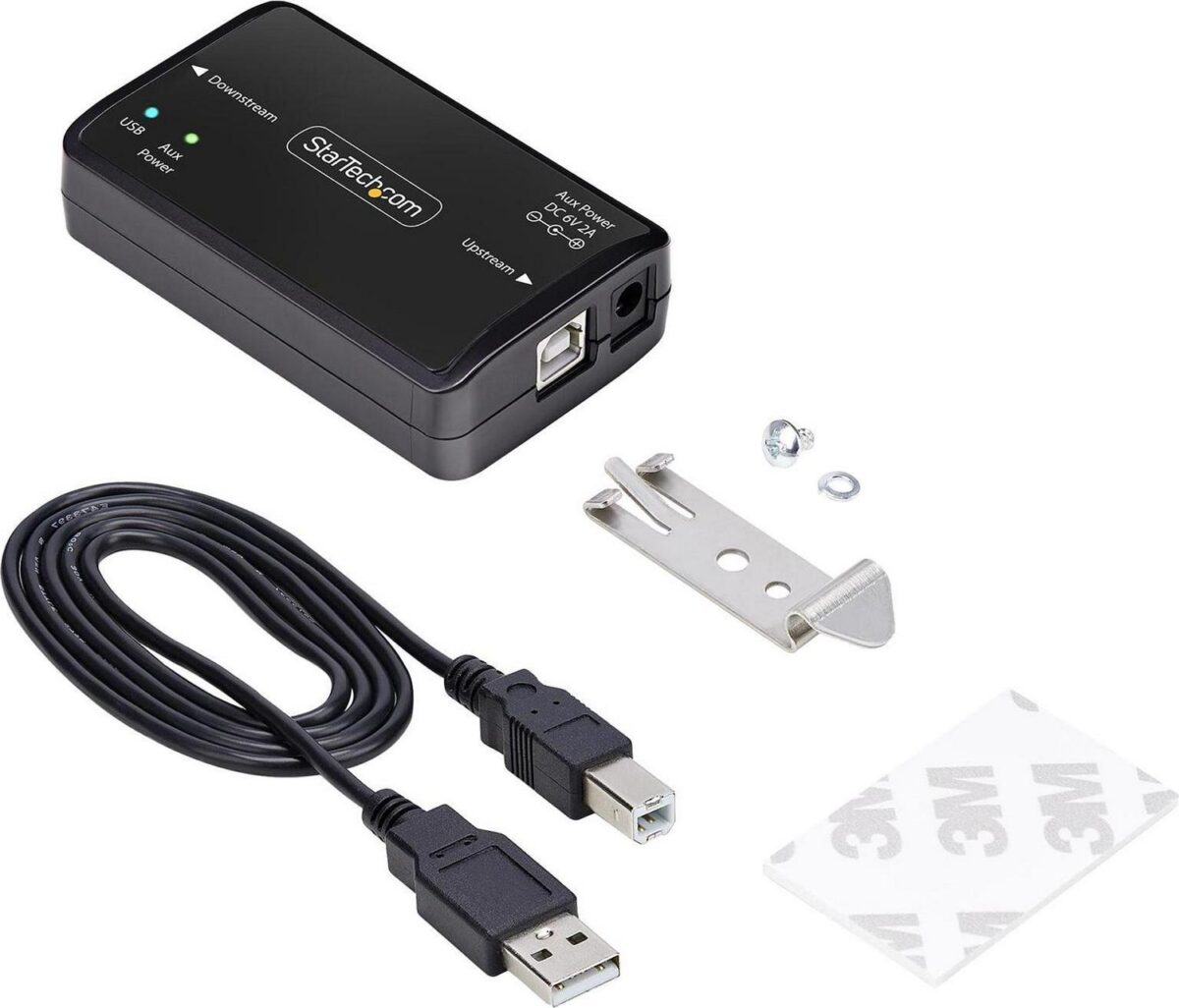

USB isolator, USB cable, adhesive strip and DIN rail mounting kit
