Grove 3 Axis Digital Accelerometer, ADXL345-

Product Overview

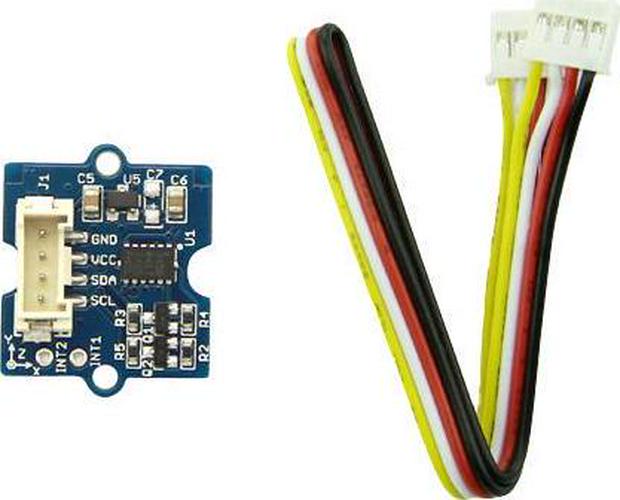

The Grove ADXL345 is a small, thin, ultra low power 3-axis accelerometer, providing high resolution (13-bit) measurement at up to ±16 g. The ADXL345 is well suited for mobile device applications. It measures the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock. Its high resolution (3.9 mg/LSB) enables measurement of inclination changes less than 1.0°. Grove – ADXL345 is with the extreme low power consumption, as low as 23 A in measurement mode and 0.1 A in standby mode. The Low power modes enable intelligent motion-based power management with threshold sensing and active acceleration measurement at extremely low power dissipation. There is an on-board a 4-pin Grove interface (3-5VDC) for easily connect with Arduino boards and Seeeduino boards.

– Wide power range DC3V to 5V
– Plug and play with Arduino boards by grove connector
– High sensitivity
– Small, low-profile package: 14-terminal LGA
– Dimension is 130mm x 90mm x 10mm
