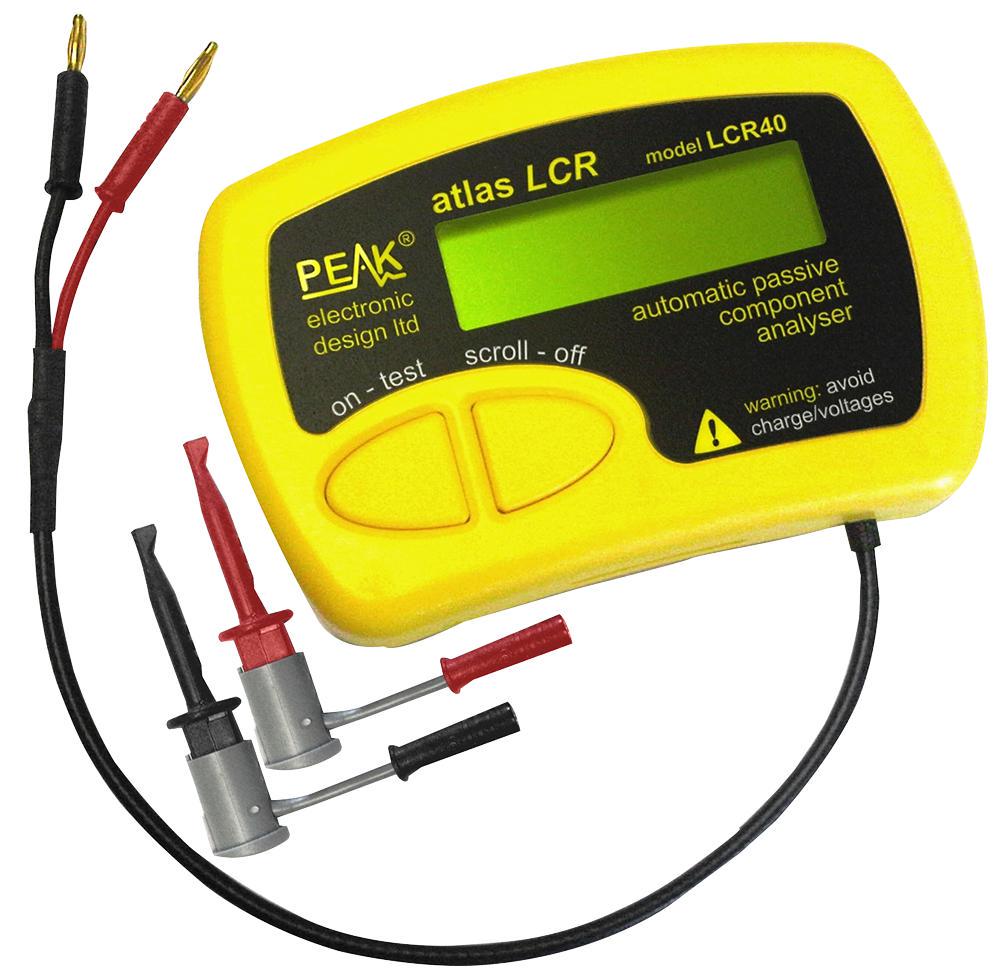

Atlas Passive Component LCR Analyser-

Product Overview

An innovative compact device for the automatic identification of most passive components (inductors, capacitors and resistors). Results are displayed on the clear green-mode LCD, showing the component type, measured value and test frequency. For inductors, the DC resistance is also automatically measured.

– Automatic identification and measurement of inductors, capacitors and resistors
– Automatic test frequency selection: DC, 1kHz, 15kHz and 200kHz
– Uses high purity sine waves (-60dB 3rd harmonic)
– Nominal Accuracy, inductance: ±1% ±1.6 H
– Nominal Accuracy, capacitance: ±1% ±0.3pF
– Nominal Accuracy, resistance: ±1% ±0.6
– Inductance measuring range: 1 H – 10H
– Capacitance measuring range: 0.4pF 10,000 F
– Resistance measuring range: 1 – 2M
– Incorporates probe compensation memory
– ROHS, WEEE and CE compliant
– Temp, op. max: 40°C
– Temp, op. min: 10°C
– Dimensions (WxHxD): 103x72x20 mm

Contents

Contents: Analyser, micro-hook probes, batteries and user guide
