4G GSM Puck Antenna-
769
Items sold in last hour
£17.99
In stock
In stock
405
People watching this product now!
-
Manufacture Warranty 1 year
-
Fast & Secure Shipping
-
Free 30-Day returns
-
Authentic Branded Product
Payment Methods:
Description
Product Overview

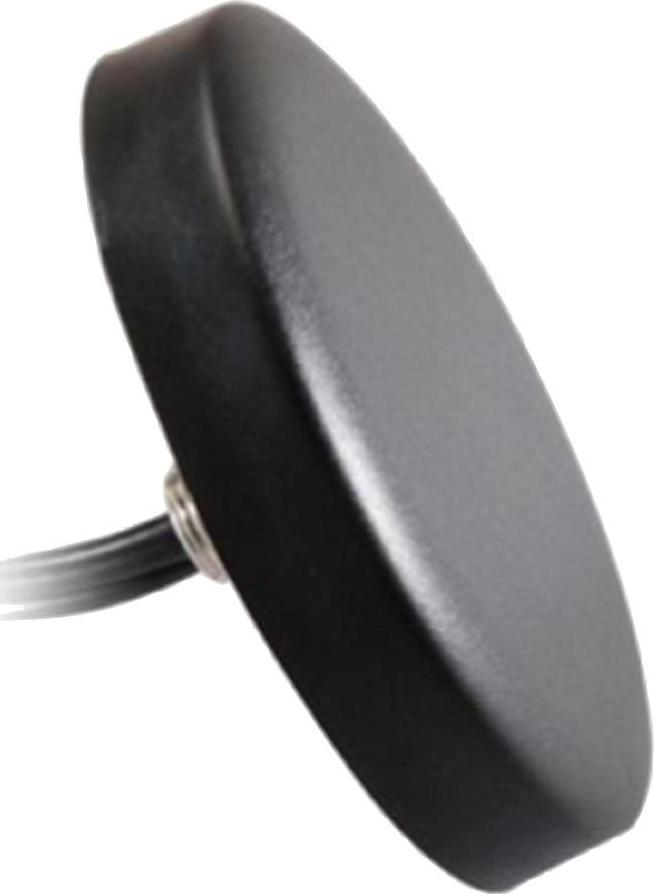

The ANT-GSMPUKS4-SMA from RF Solutions is a 4G GSM Puck Antenna.
– Suitable for general purpose GSM, ISM 868MHz, automative applications, covert applications etc…
– Frequency range: 698-960MHz / 1710-2690MHz
– Linear: Polarisation
– Cable: 3m RG174
– SMA / Fakra connector
– Operates -40°C to 85°C Temperature
– Material: ABS
– Vibration: 10-55Hz, 1.5mm amplitude 2 hours
– Relative humidity up to 95%
– IP rating: IP67
– Dimensions (ØxD): 81.3×14.6mm
- Frequency range: 698-960MHz / 1710-2690MHz
- Linear: Polarisation
- Cable: 3m RG174
- Material: ABS
- Vibration: 10-55Hz, 1.5mm amplitude 2 hours
- IP rating: IP67
- Dimensions (xD): 81.3×14.6mm
- Antenna Type: Puck
- Frequency Min: 698MHz
- Frequency Max: 2690MHz
- Antenna Mounting: Screw
- Gain: 2.5dB
- VSWR: 3
- Input Impedance: 50ohm
- Antenna Polarisation: Linear
- Manufacturer: RF SOLUTIONS
- Manufacturer Part No: ANT-GSMPUKS4-SMA
- Order Code: RF00975
- Technical Datasheet: ANT-GSMPUKS4-SMA Datasheet
Specification
Overview
| Dimensions | 3.2 × 0.57 cm |
|---|---|
| Brand |
RF SOLUTIONS |
